A refined 80% TKL keyboard built for daily work, focused gaming, and expressive typing. Practical in layout, precise in structure, and quietly distinctive from every angle.

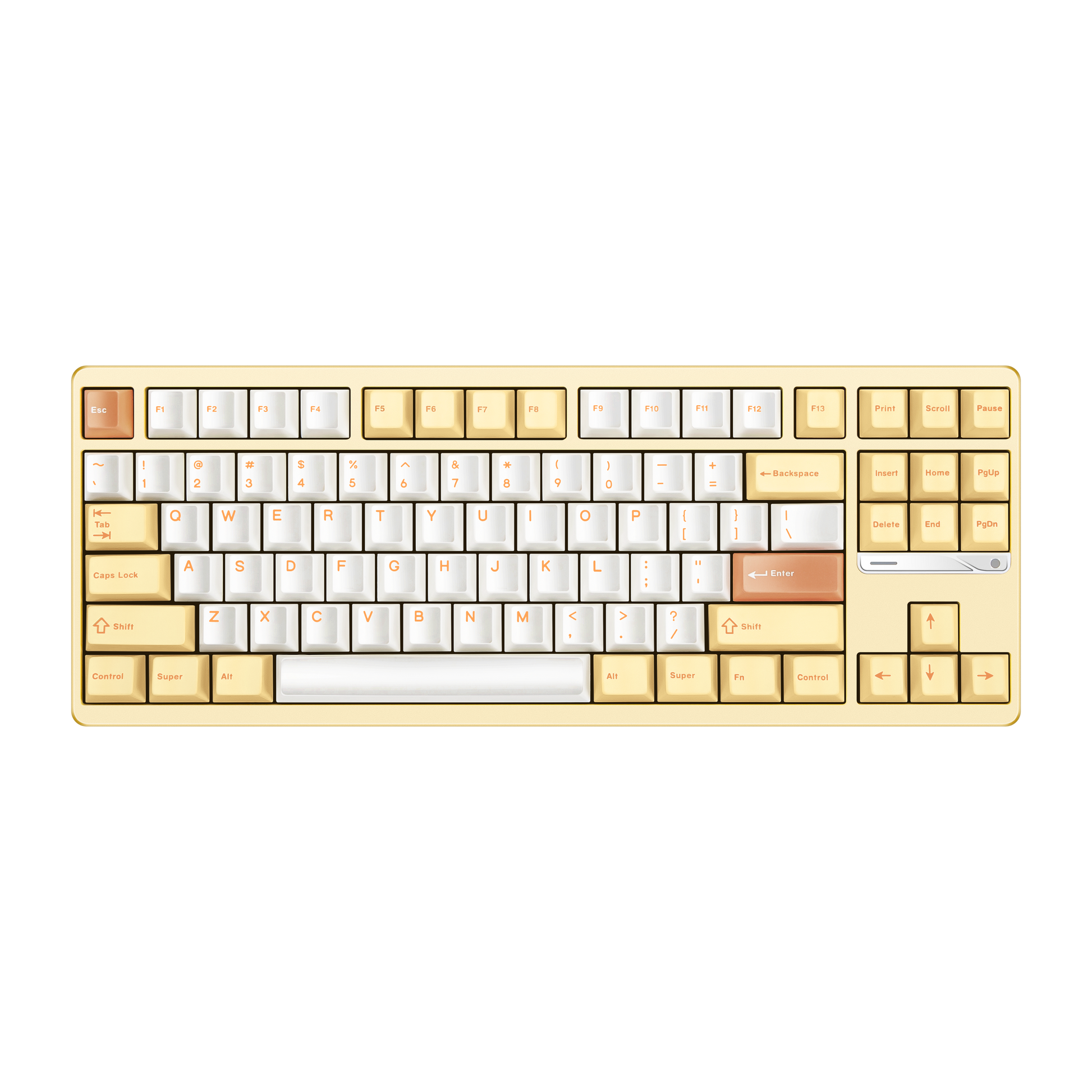

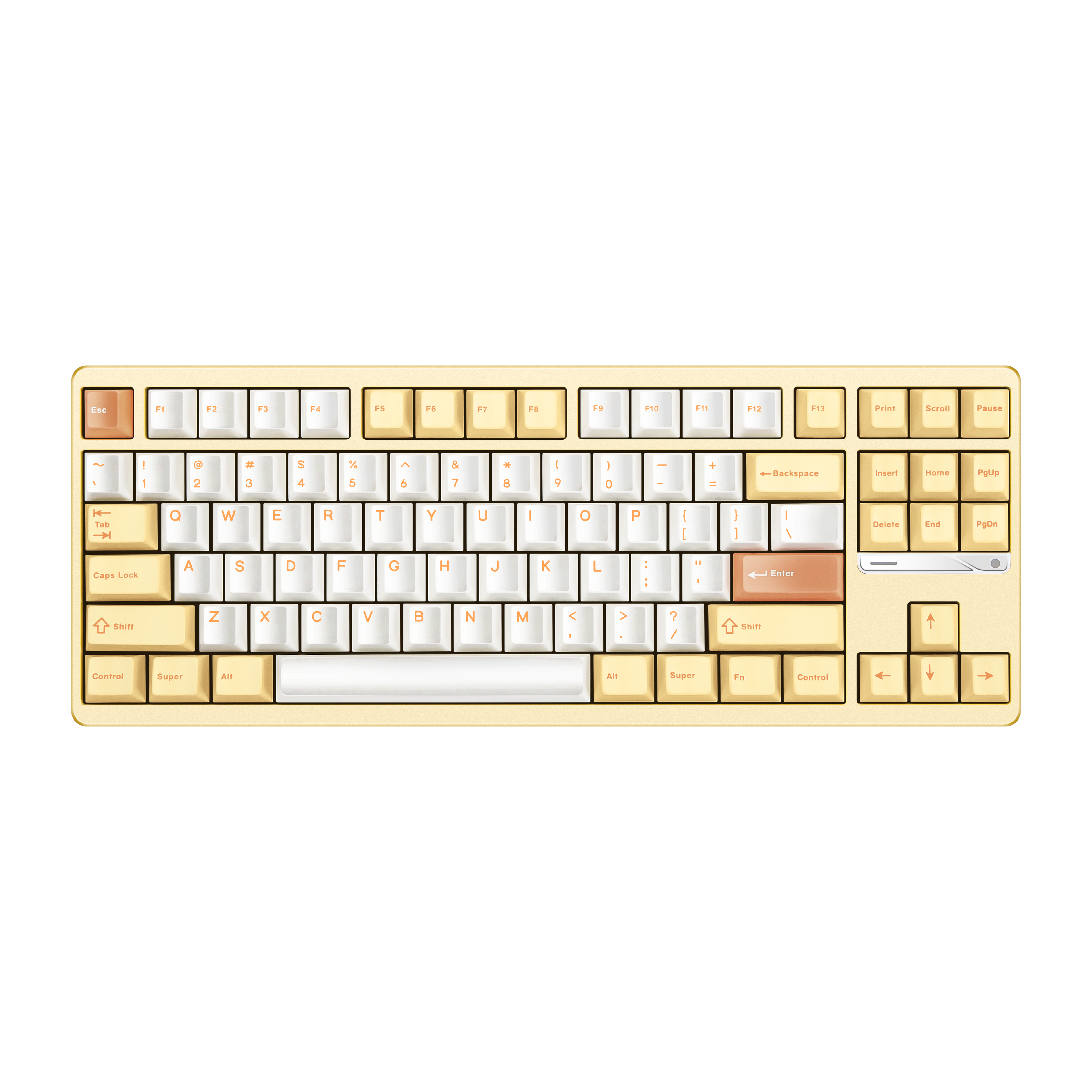

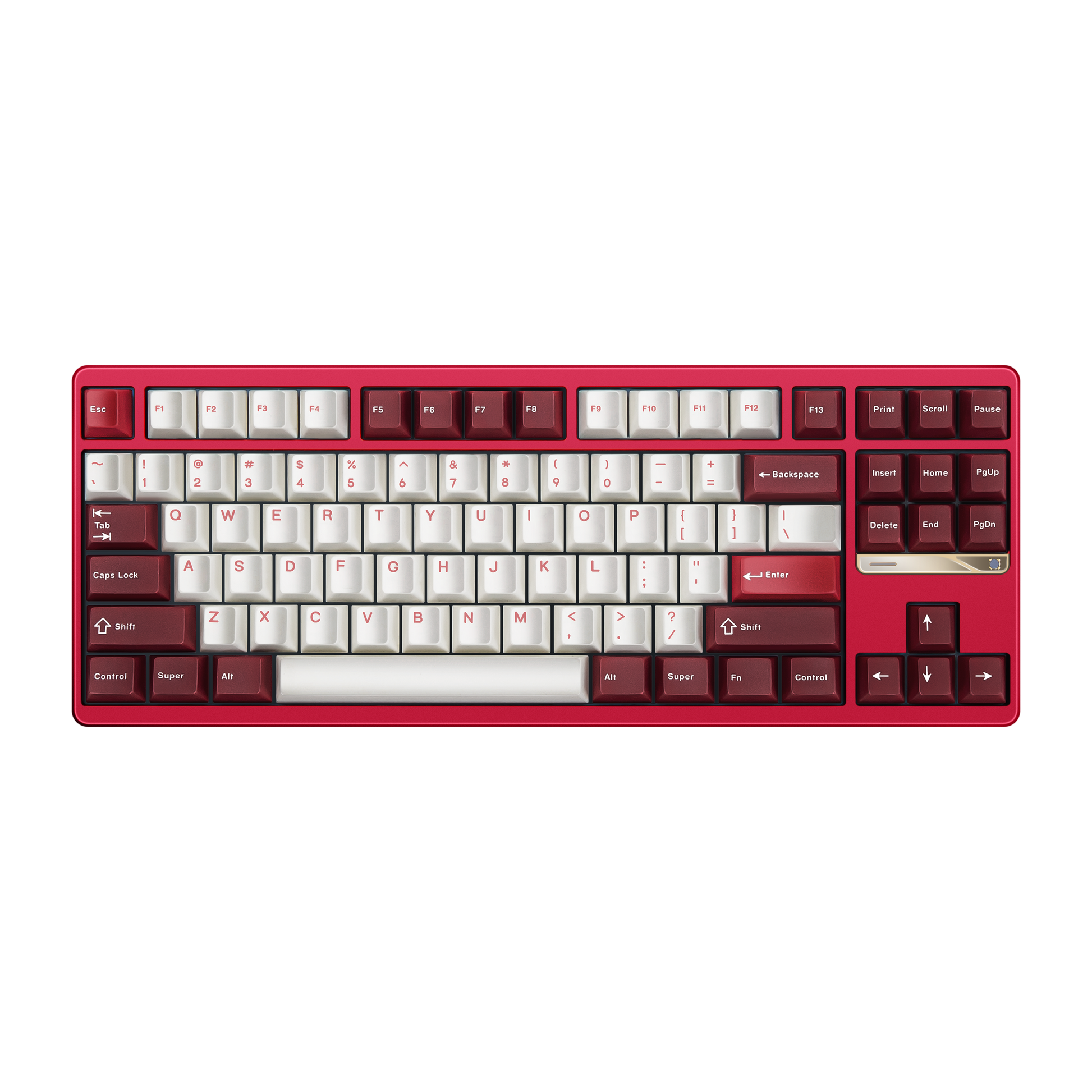

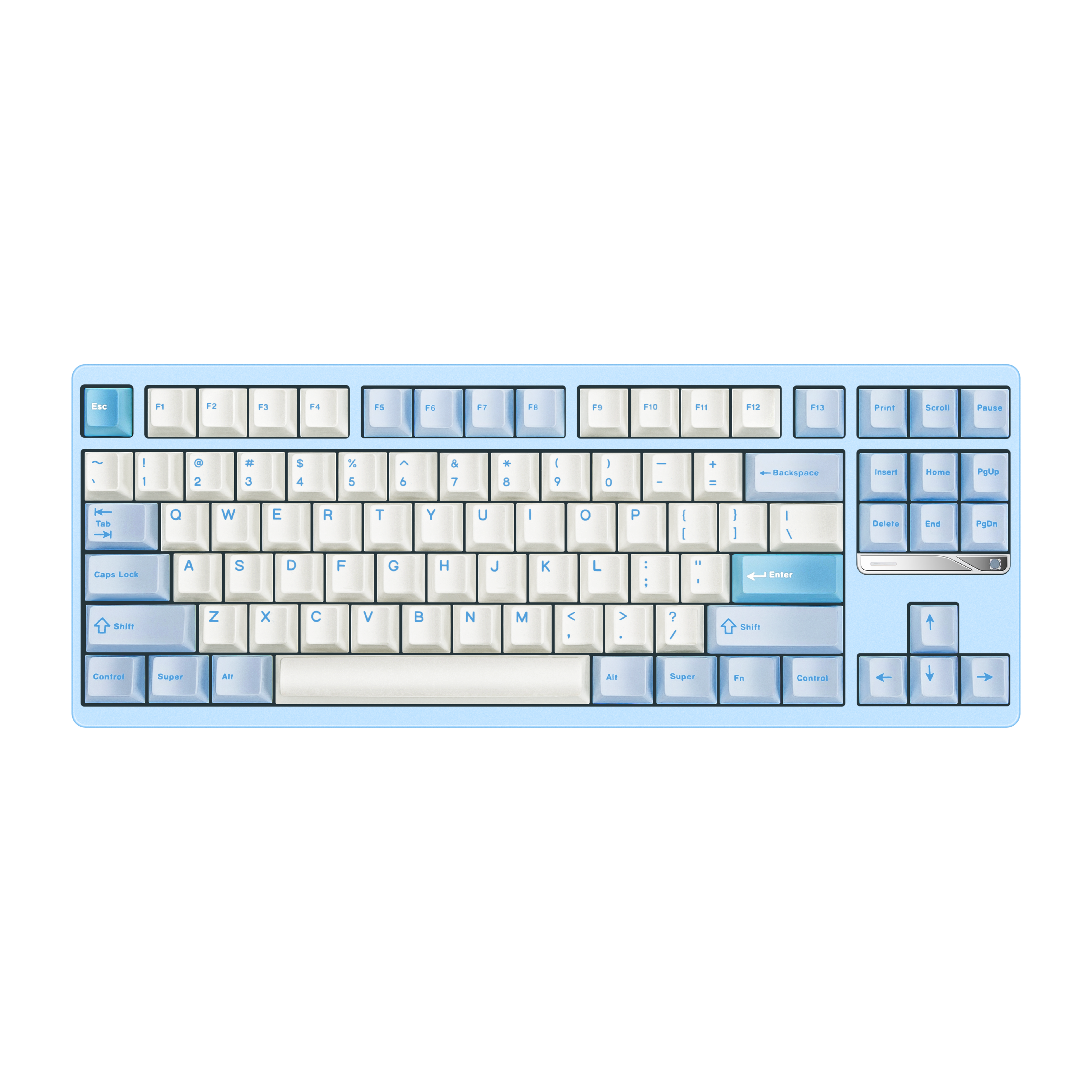

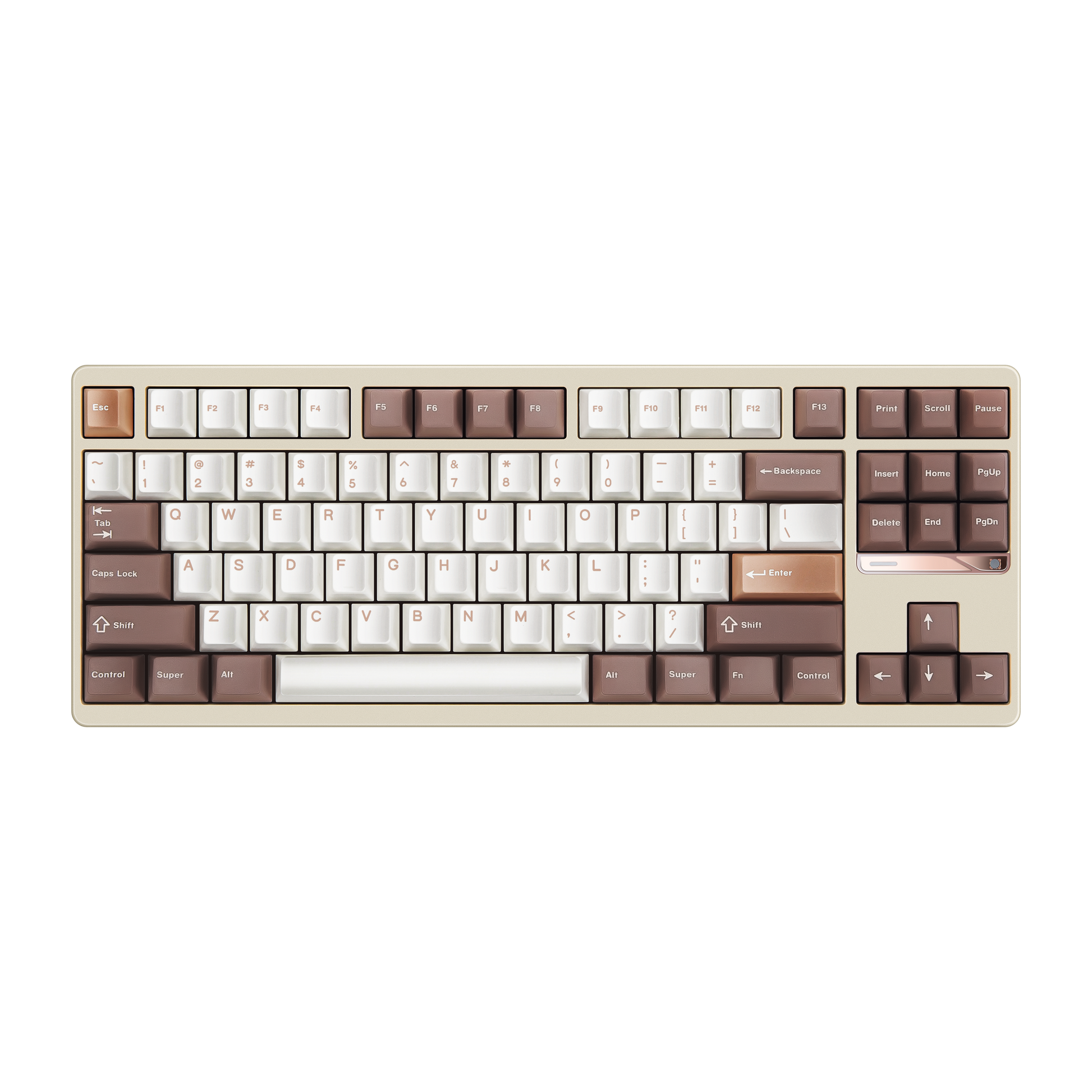

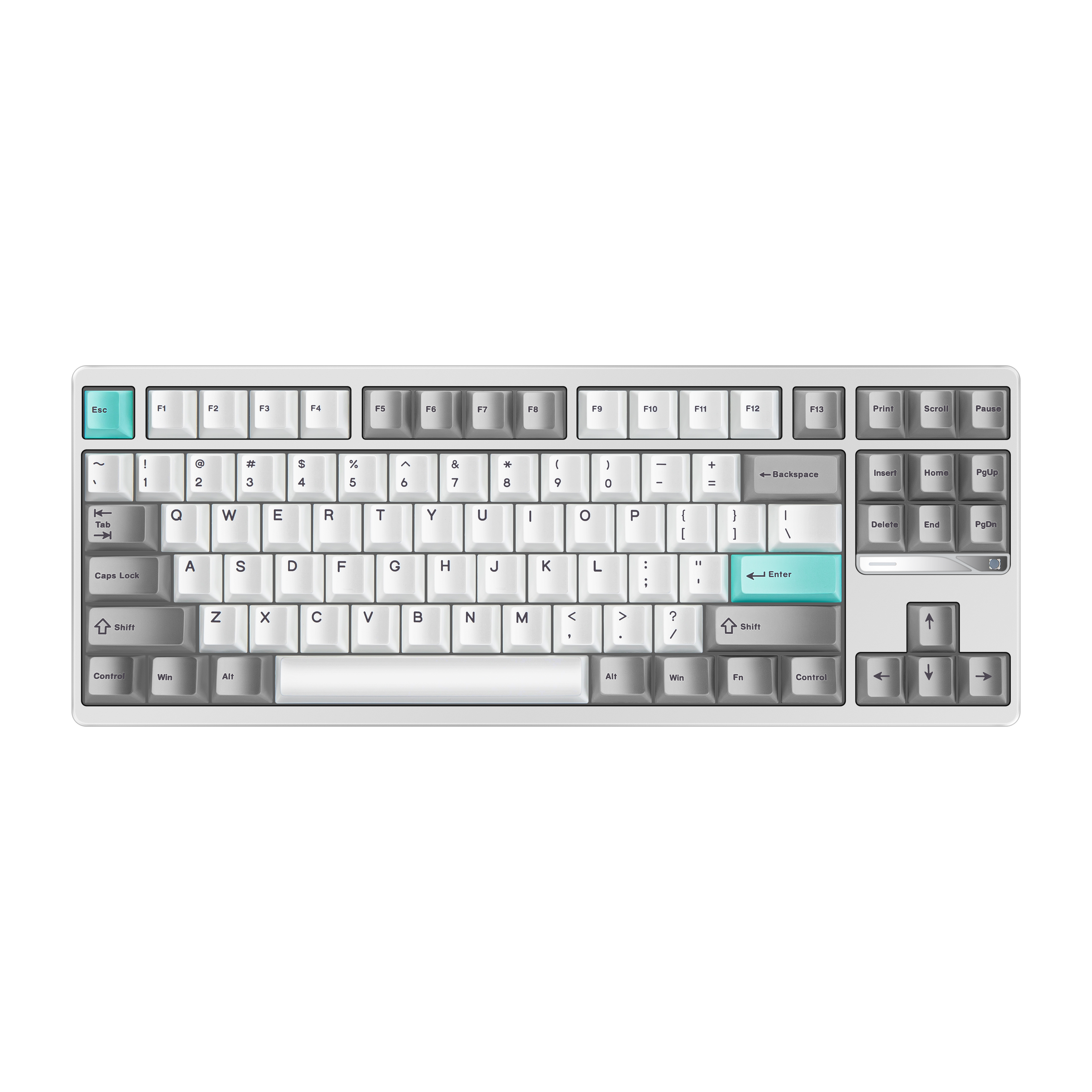

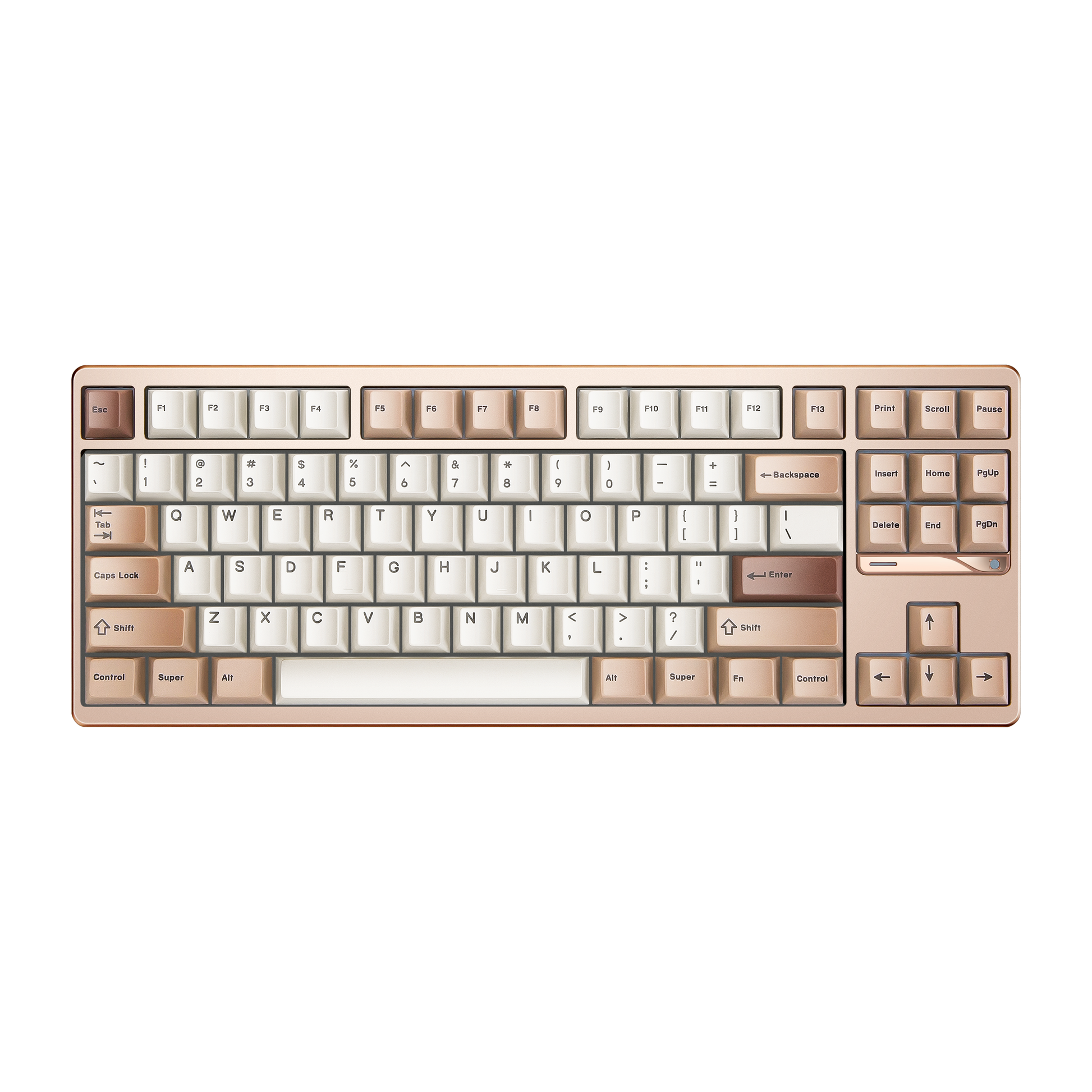

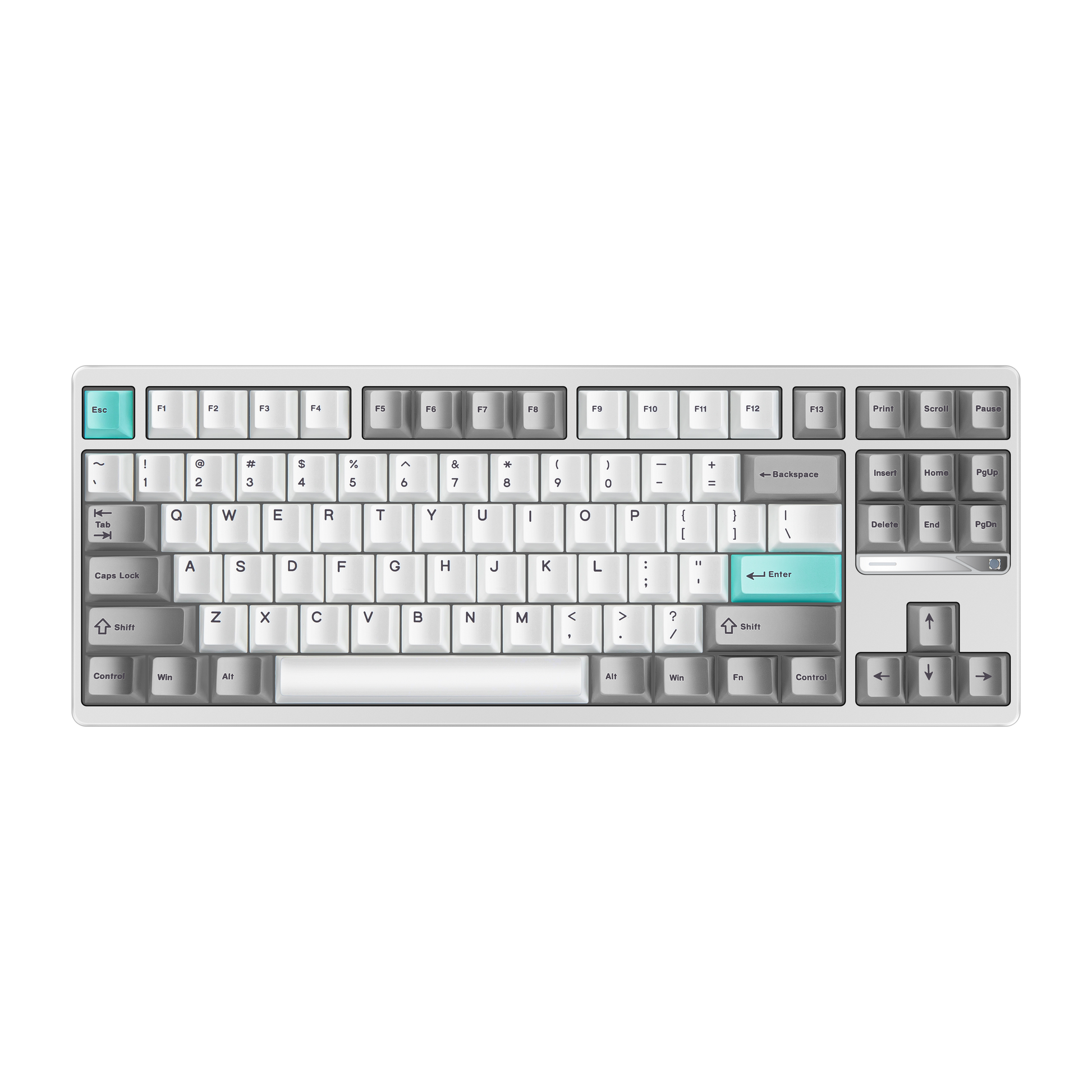

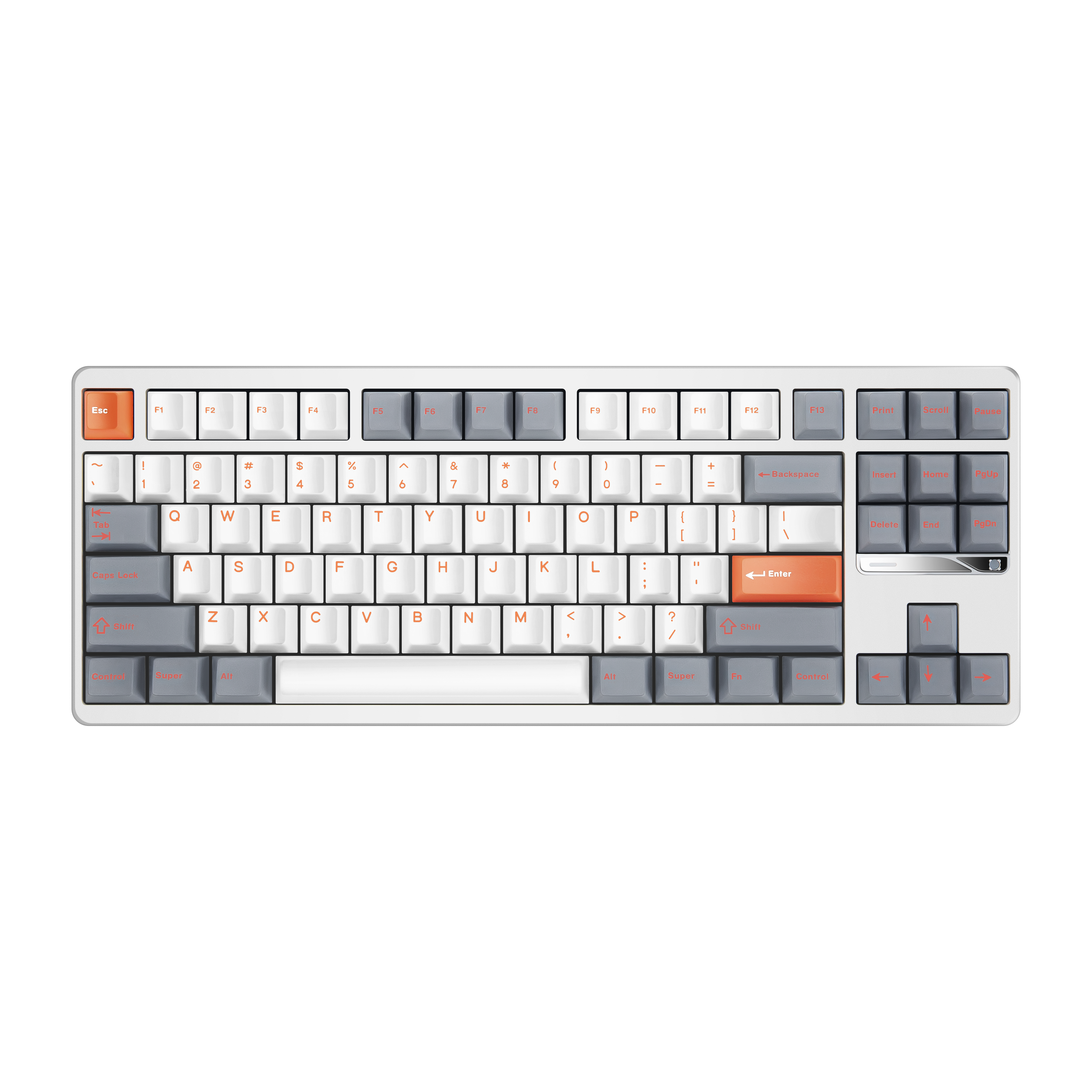

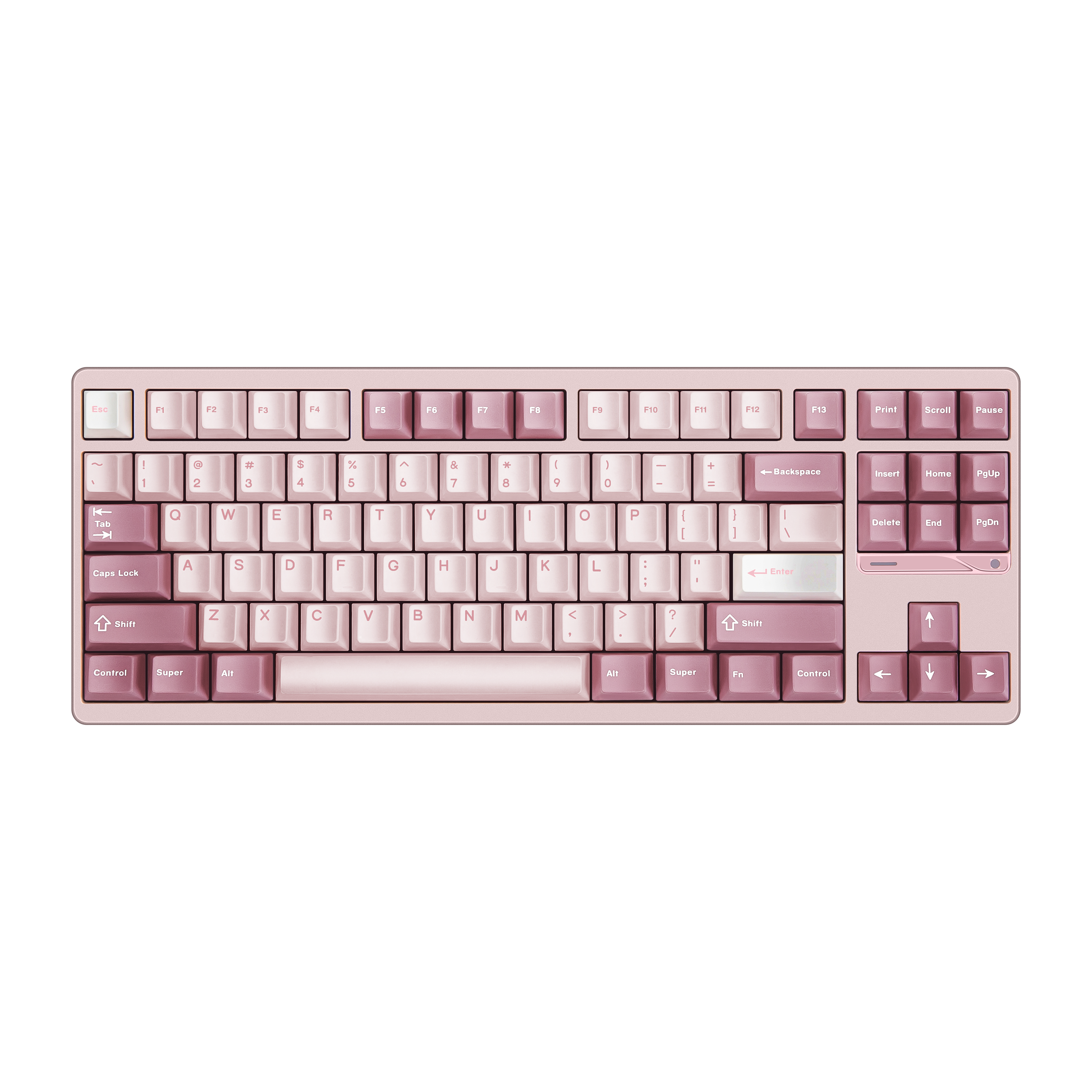

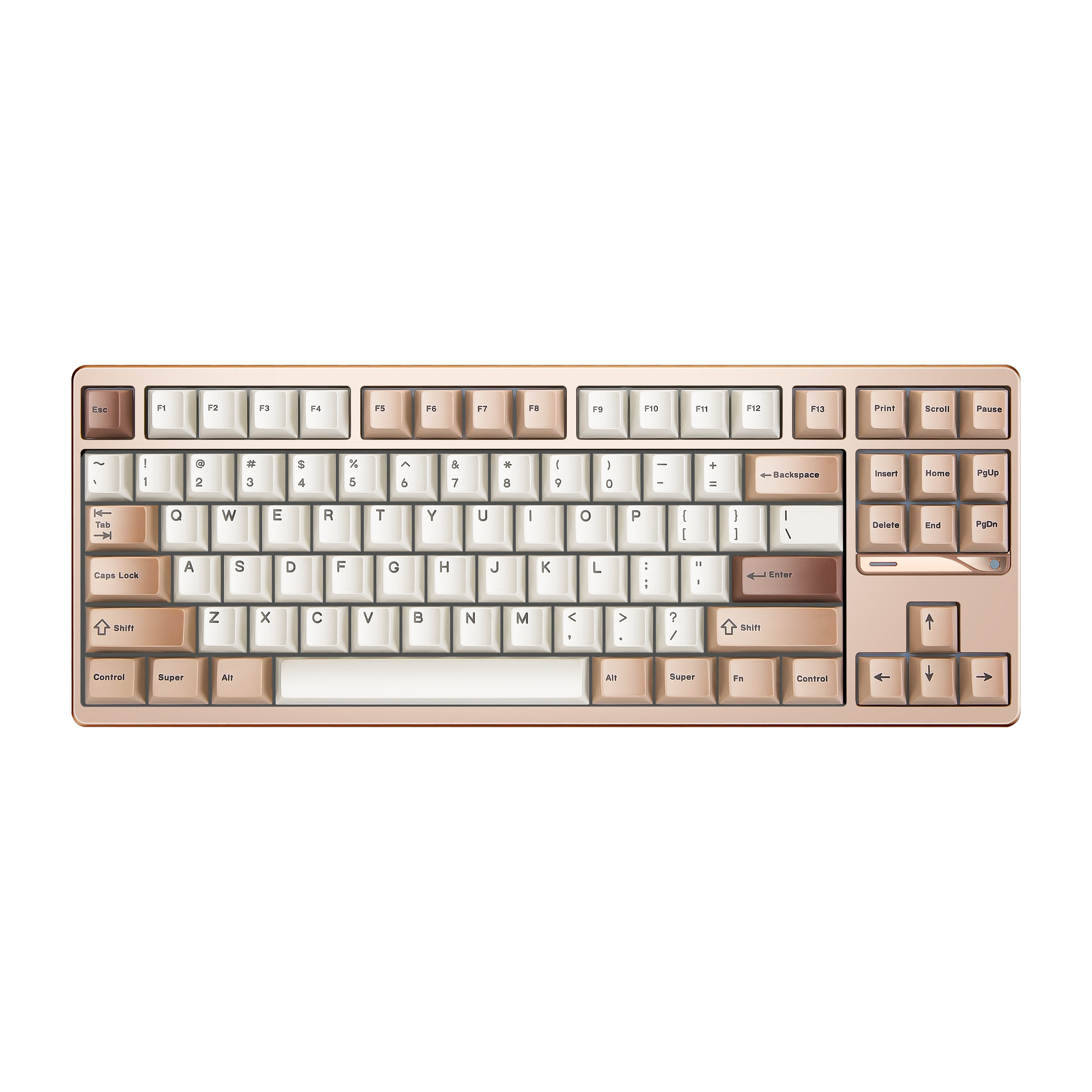

Layout Design

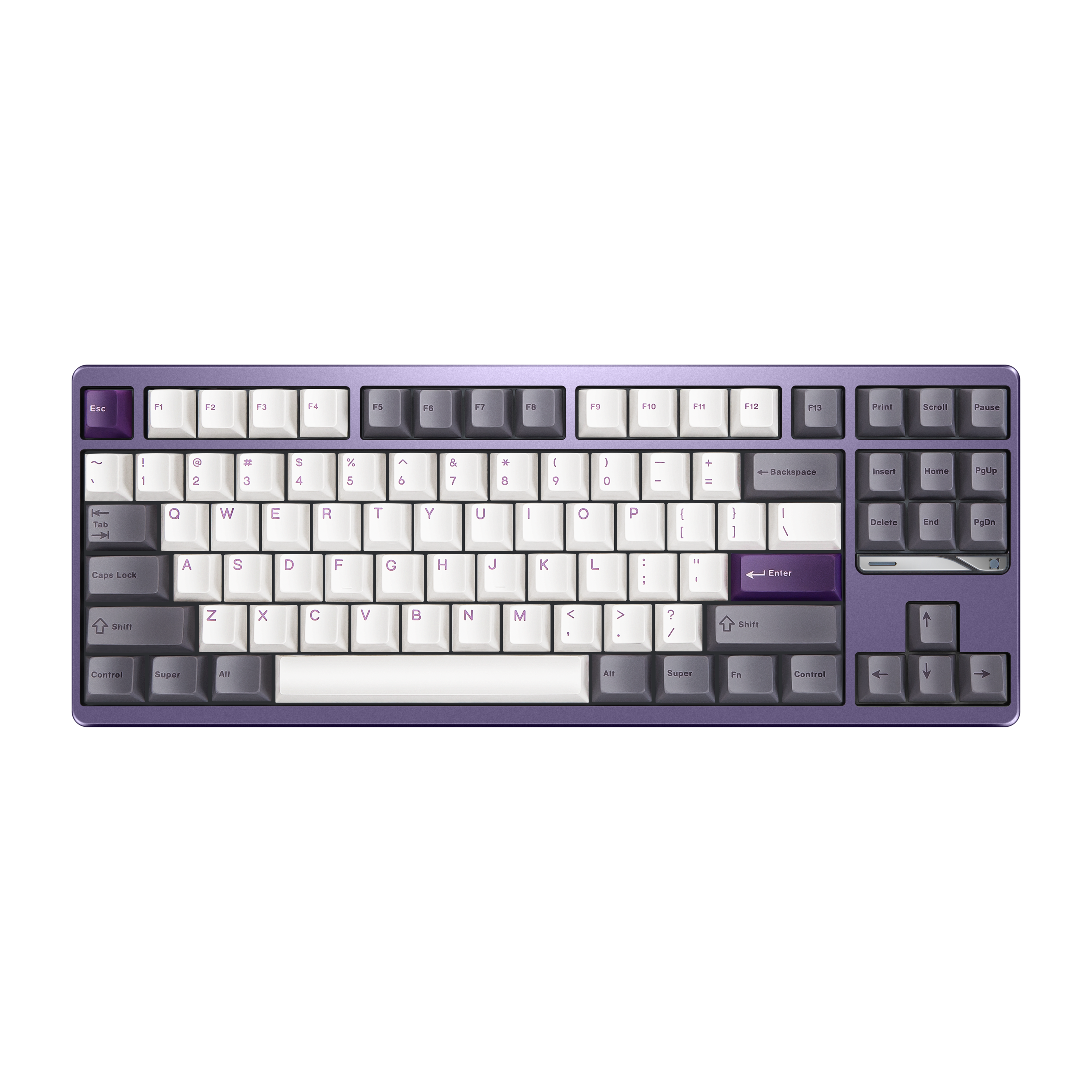

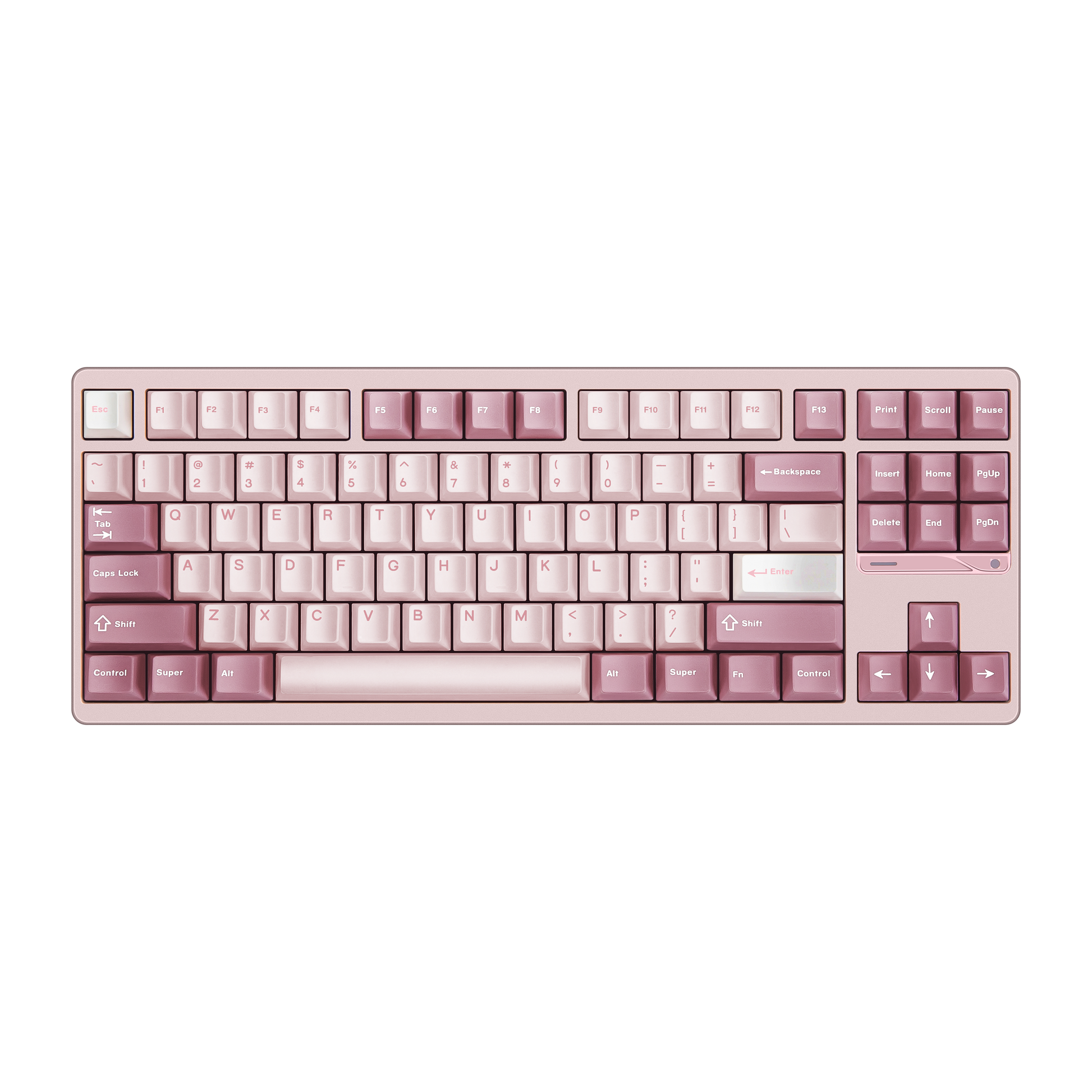

Classic 80%, refined for modern use.
The traditional 80% TKL layout keeps the essential keys for both productivity and gaming, making it one of the most practical choices for daily use. EVO80 preserves the regular F-row and retains the customizable F13 key, creating a clean and highly symmetrical appearance.
Front Signature
A minimal accent with motion.
On the right-hand side, EVO80 keeps all function keys for convenience while introducing a sleek metal accent strip beneath them. The dynamic LEDs bring subtle motion to the front design, giving the keyboard a distinctive interactive presence without interrupting its minimalist character.
Rear Design
Designed beyond the first glance.
Though the rear side is often overlooked during everyday use, EVO80 treats it as part of the complete object. A decorative groove begins at the USB port and gradually becomes shallower toward both ends, subtly enhancing its recognisability.

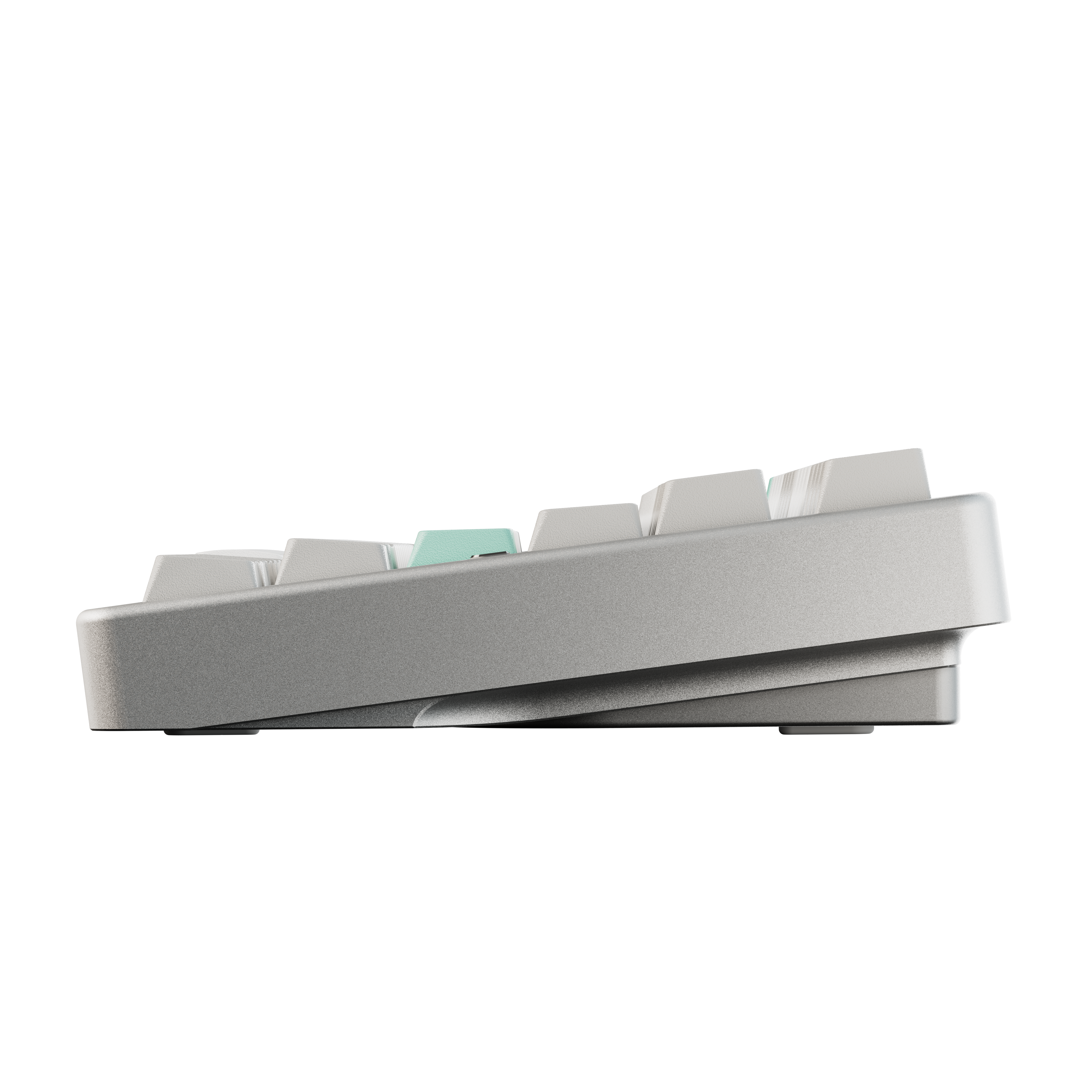

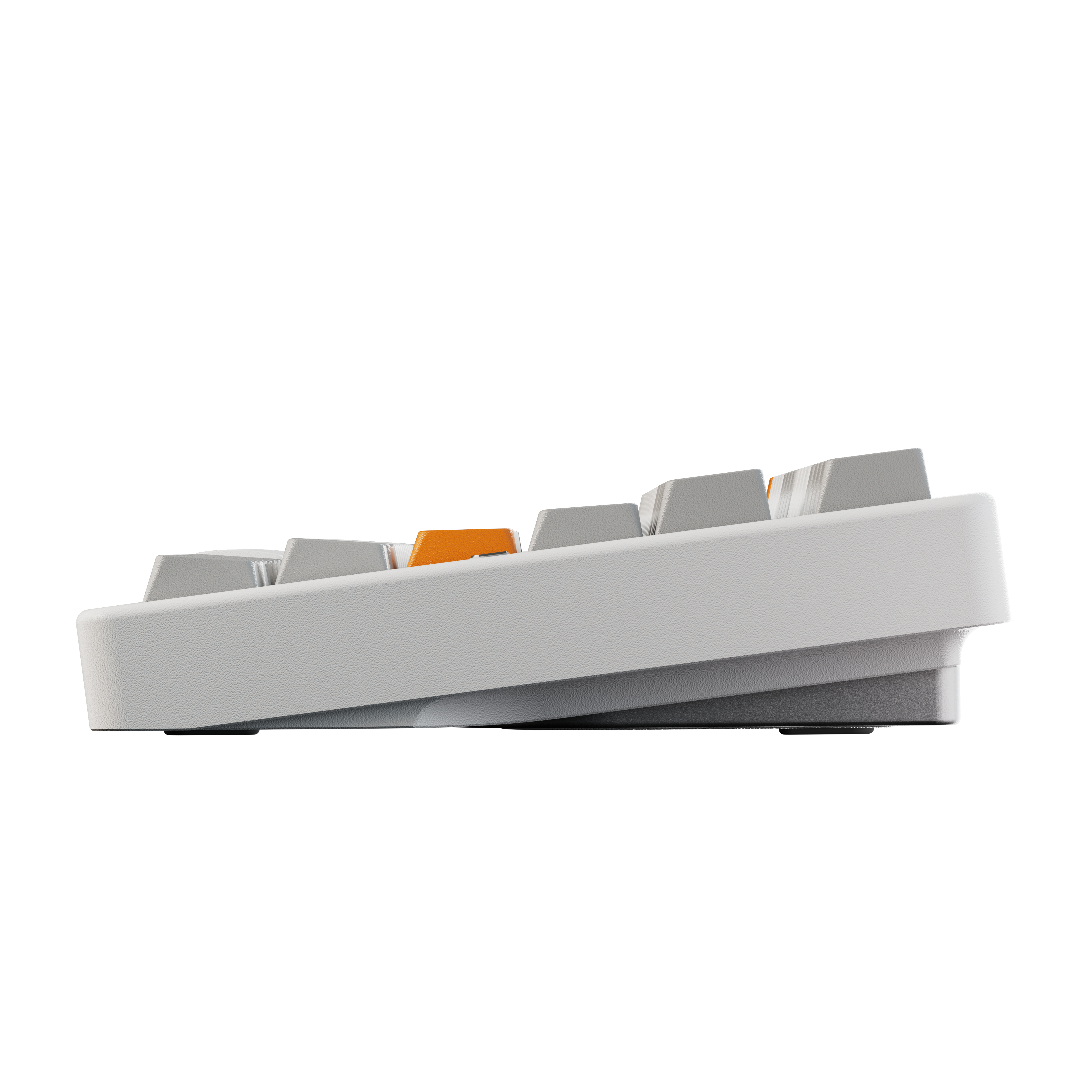

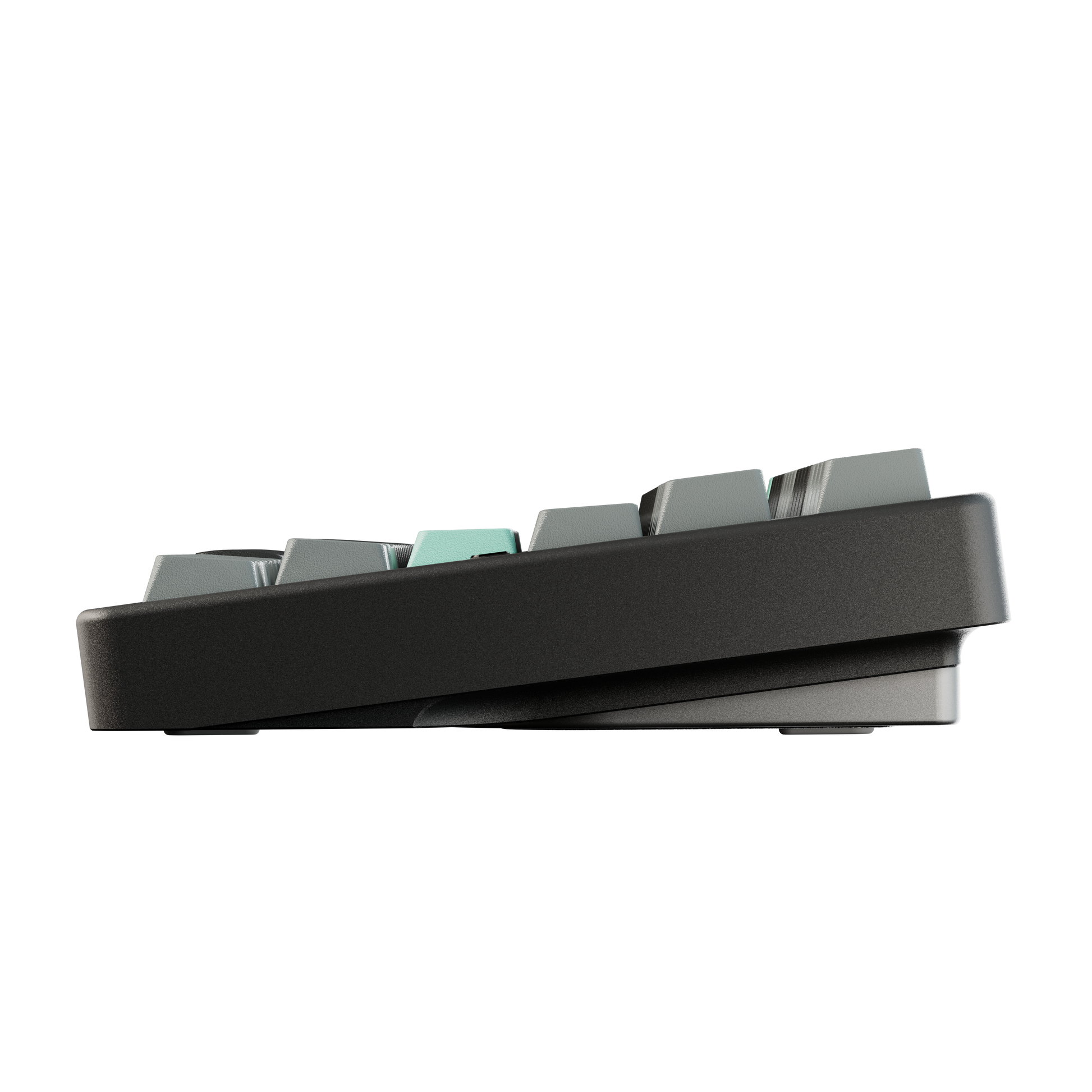

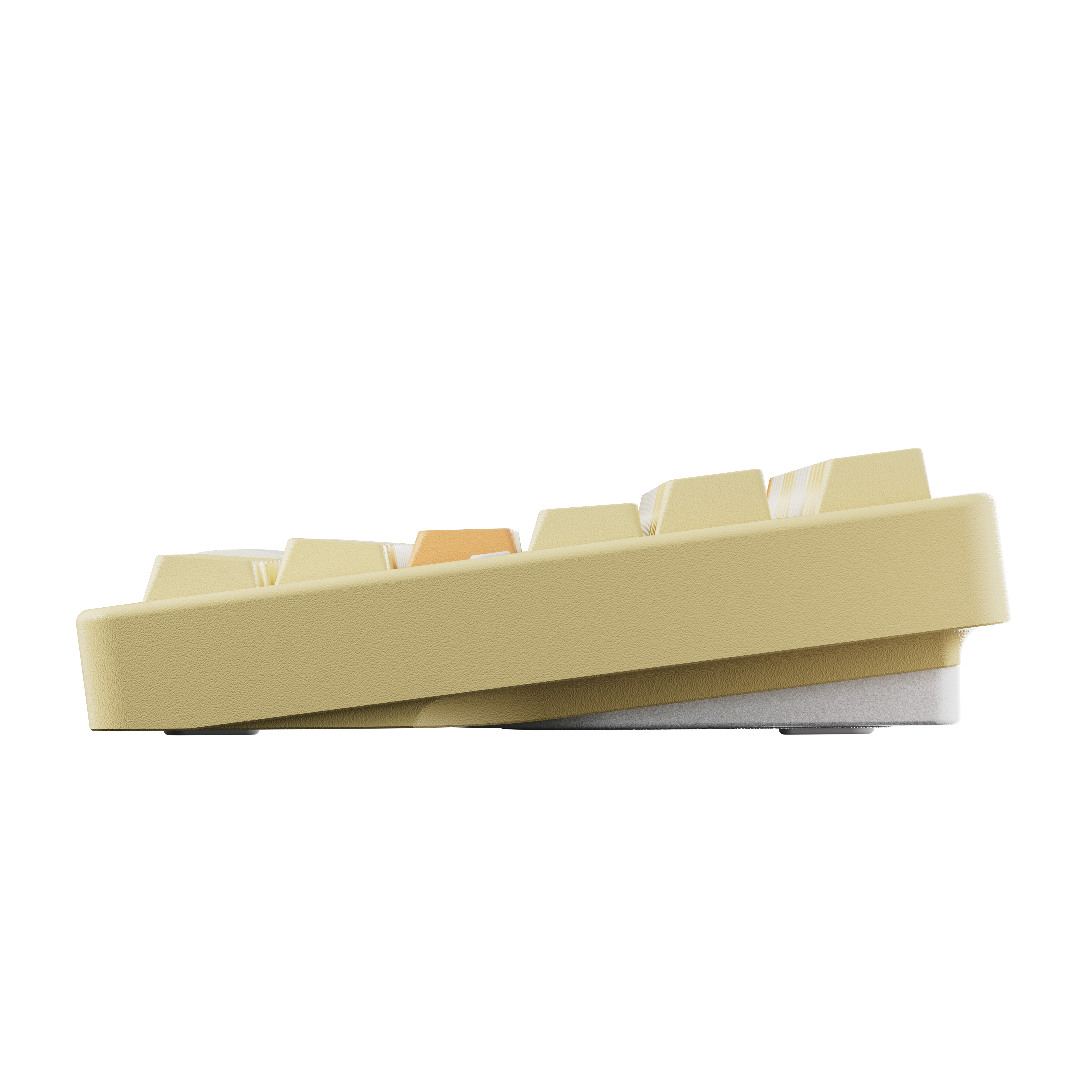

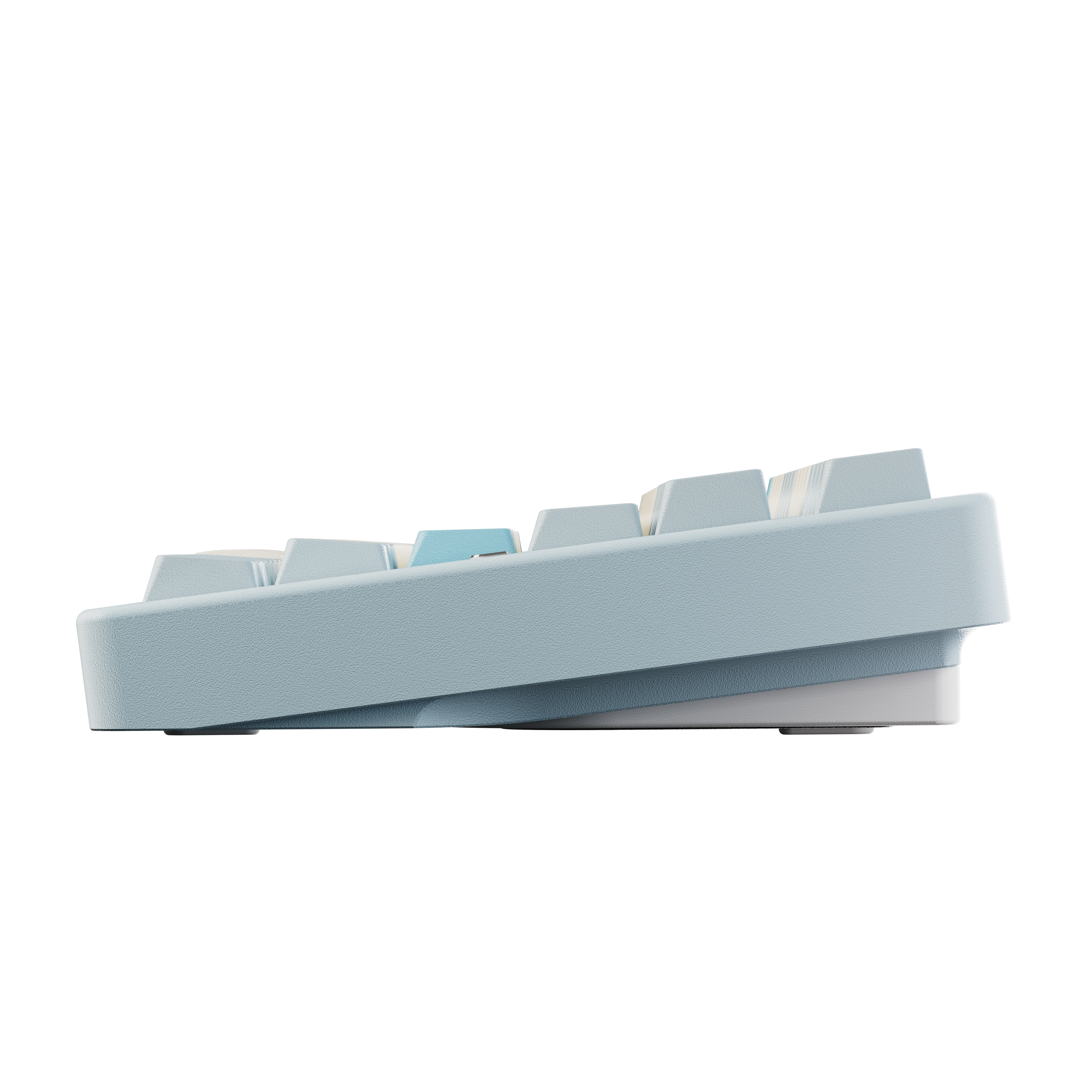

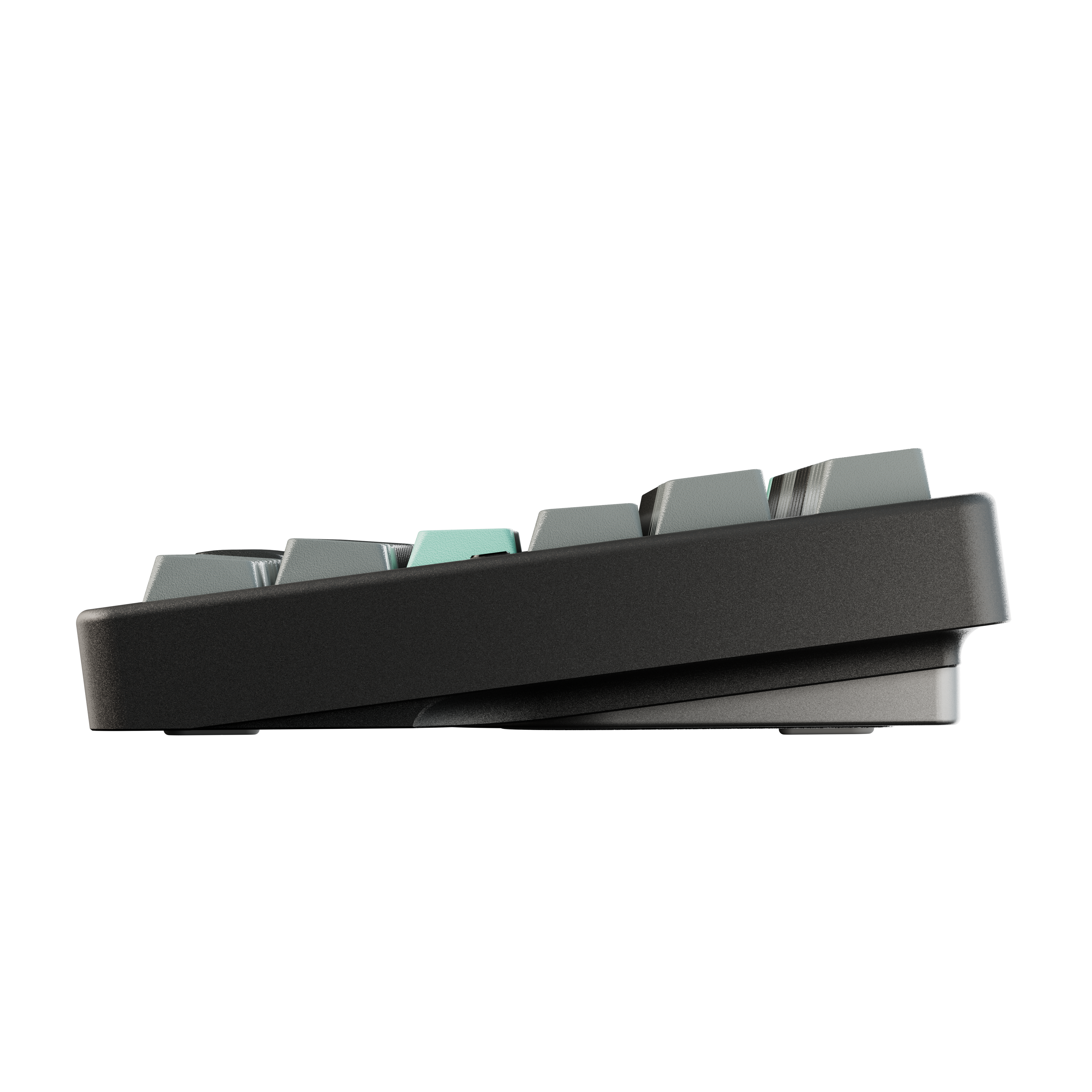

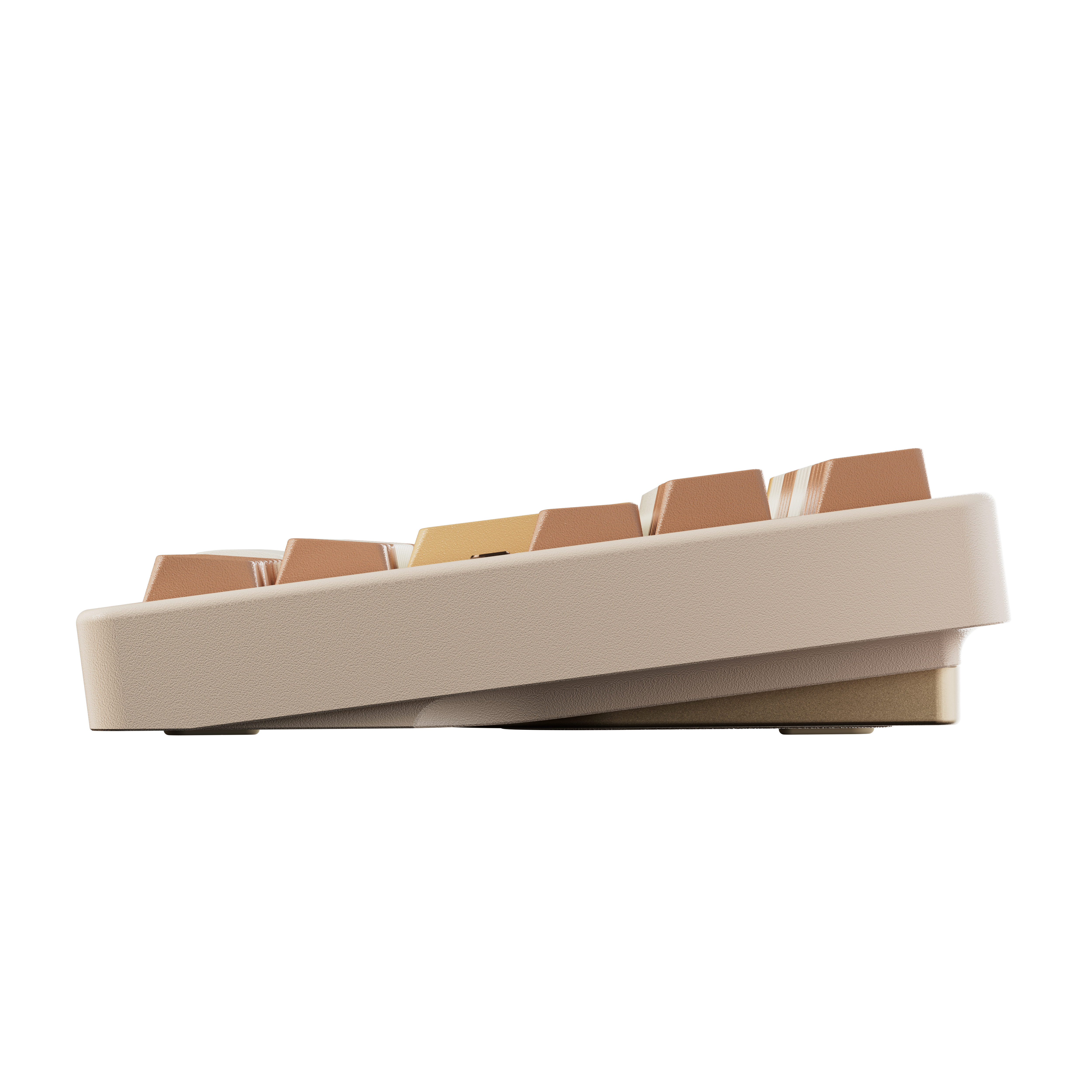

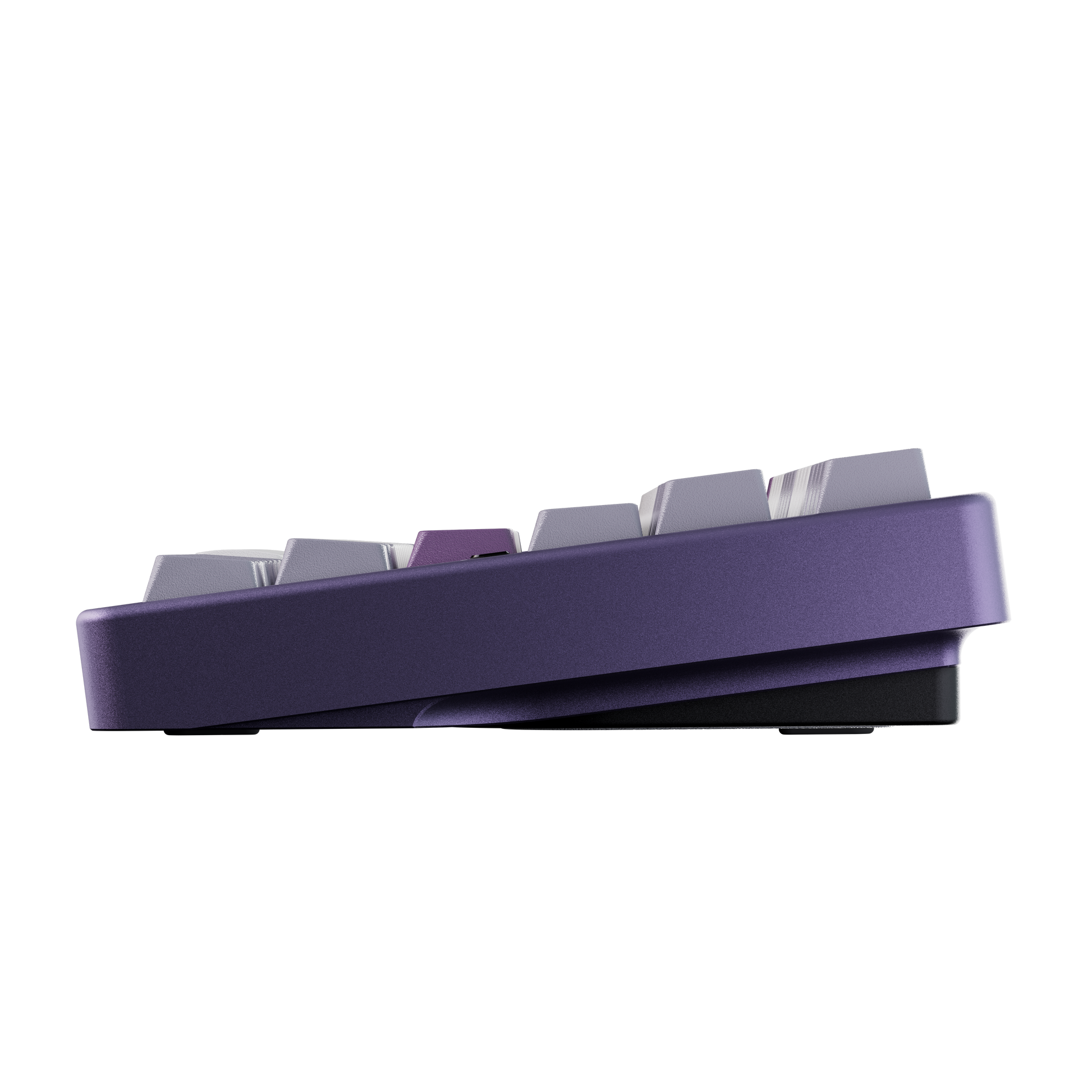

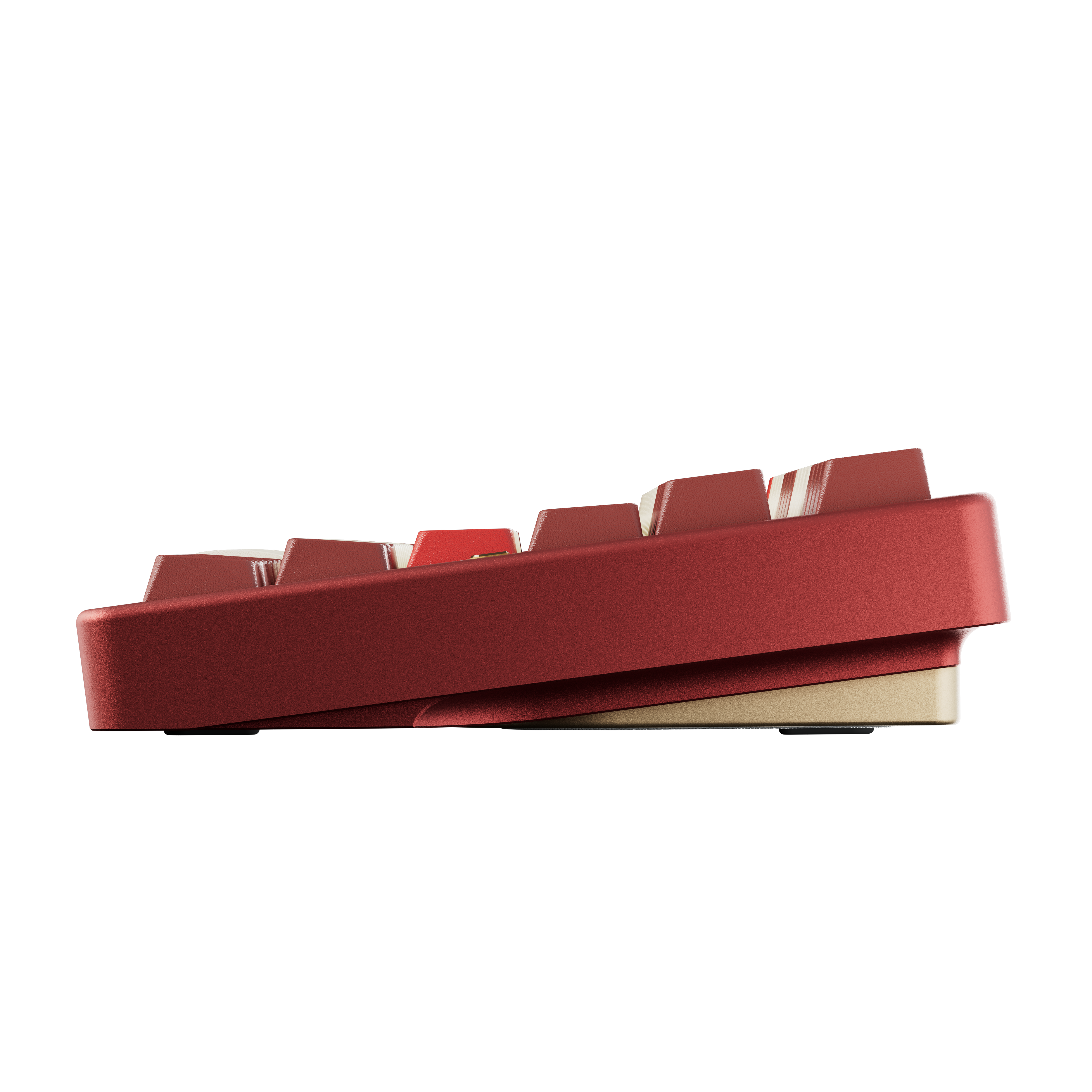

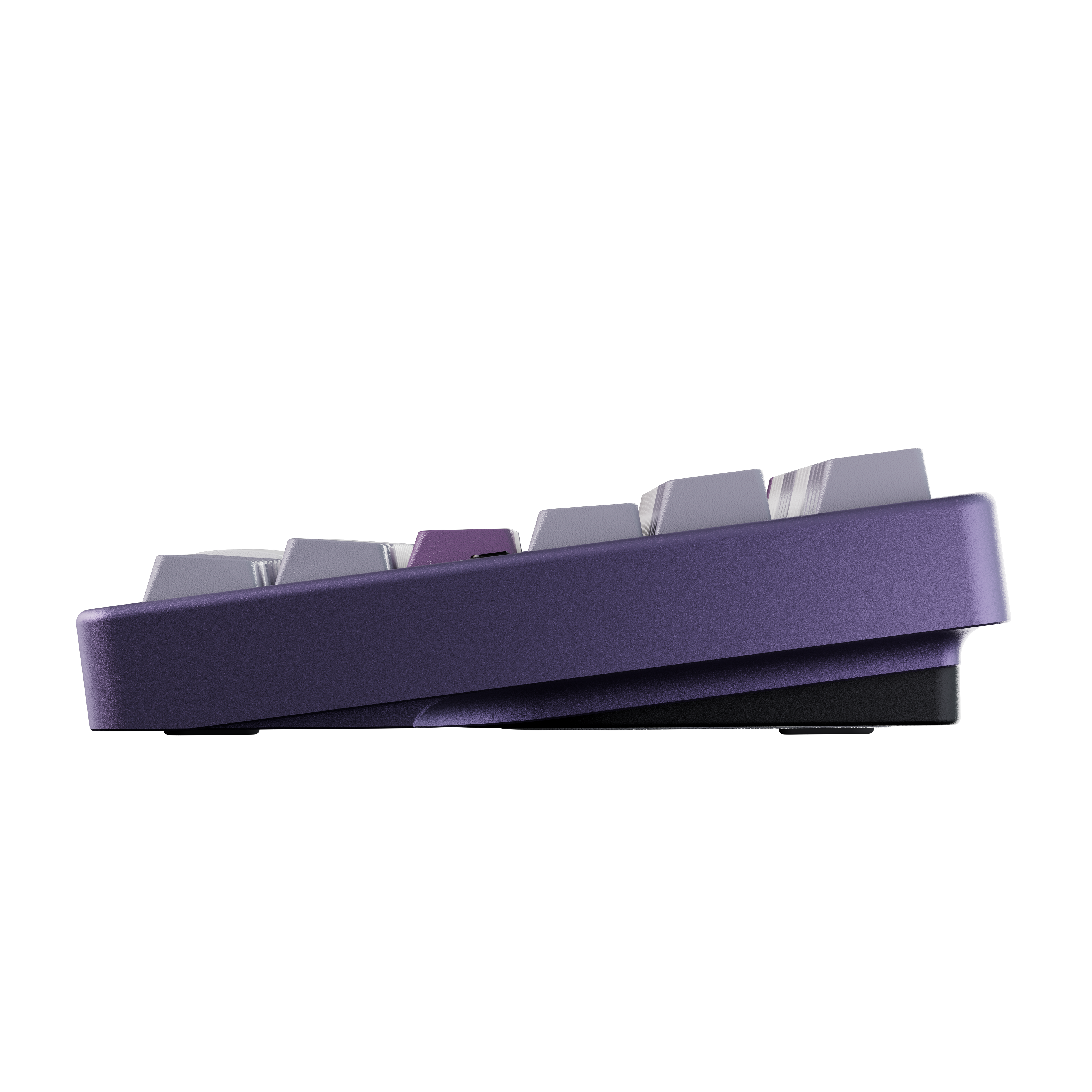

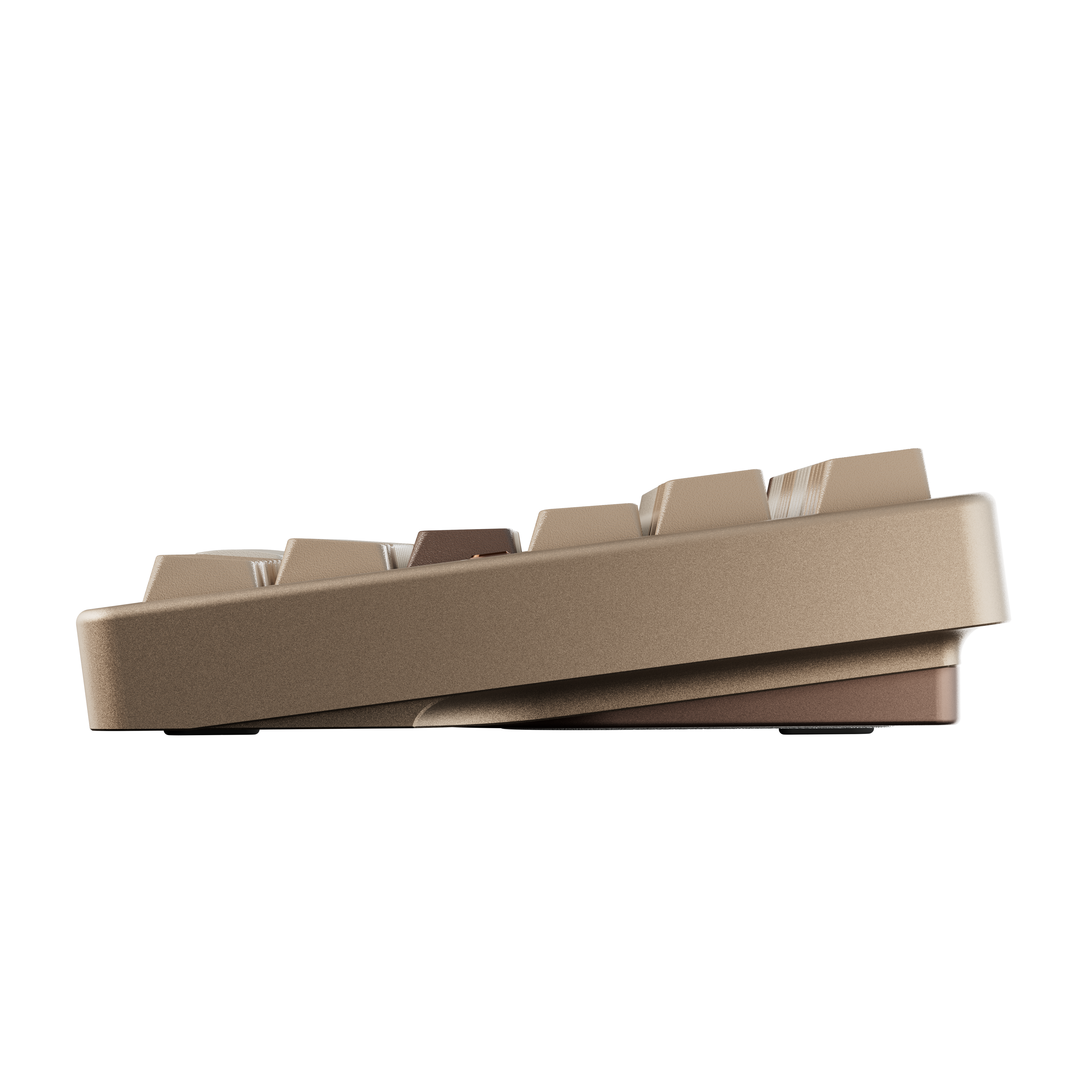

Side Design

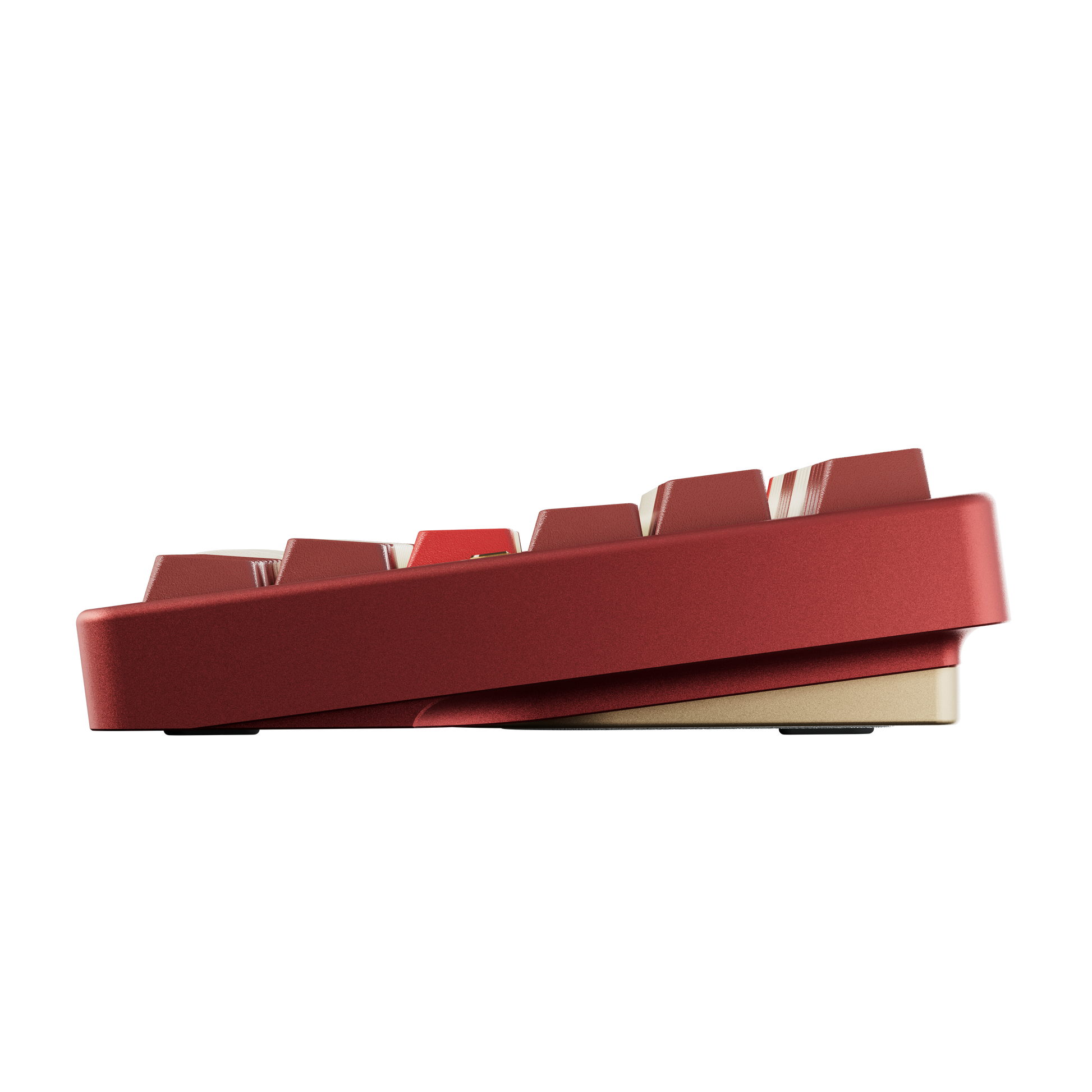

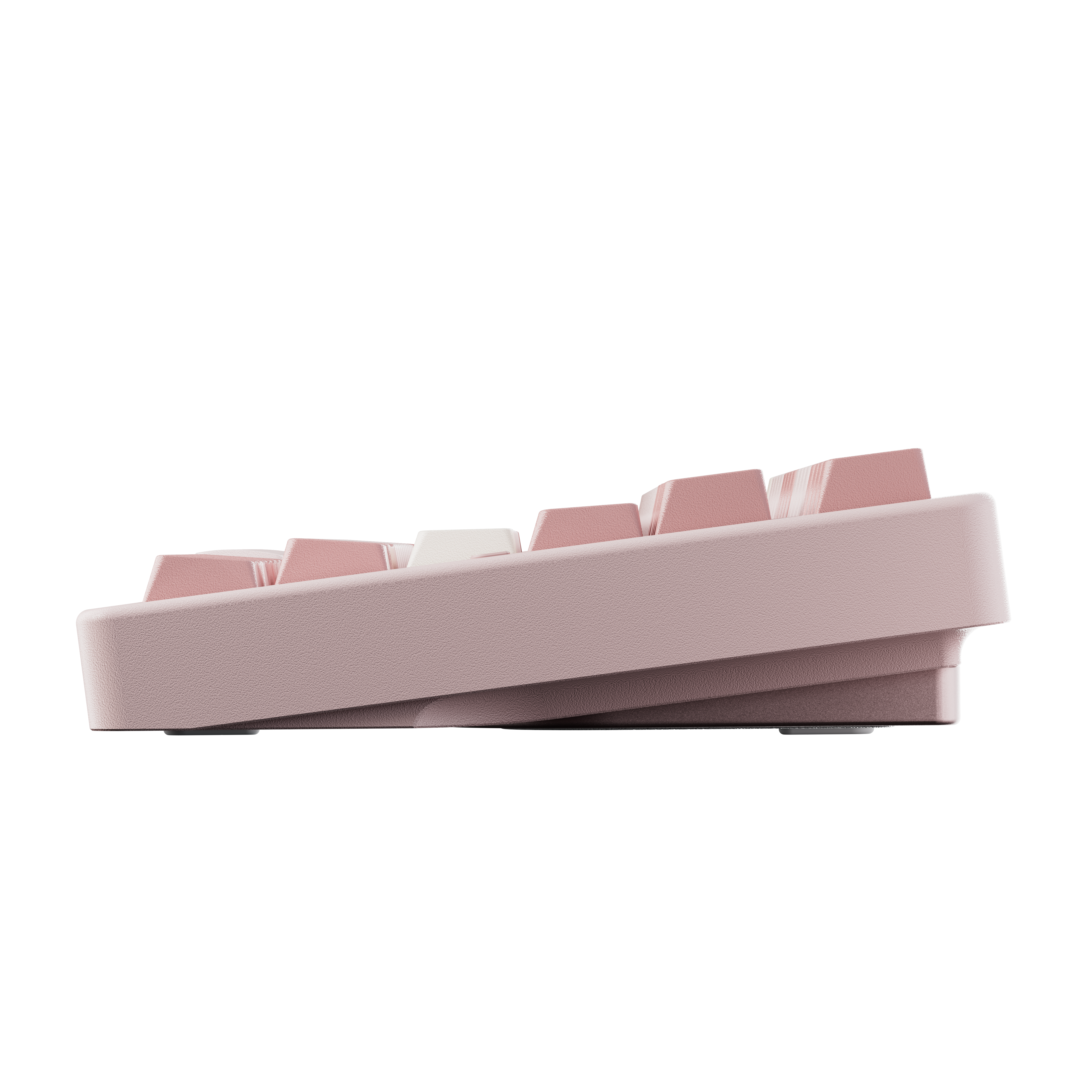

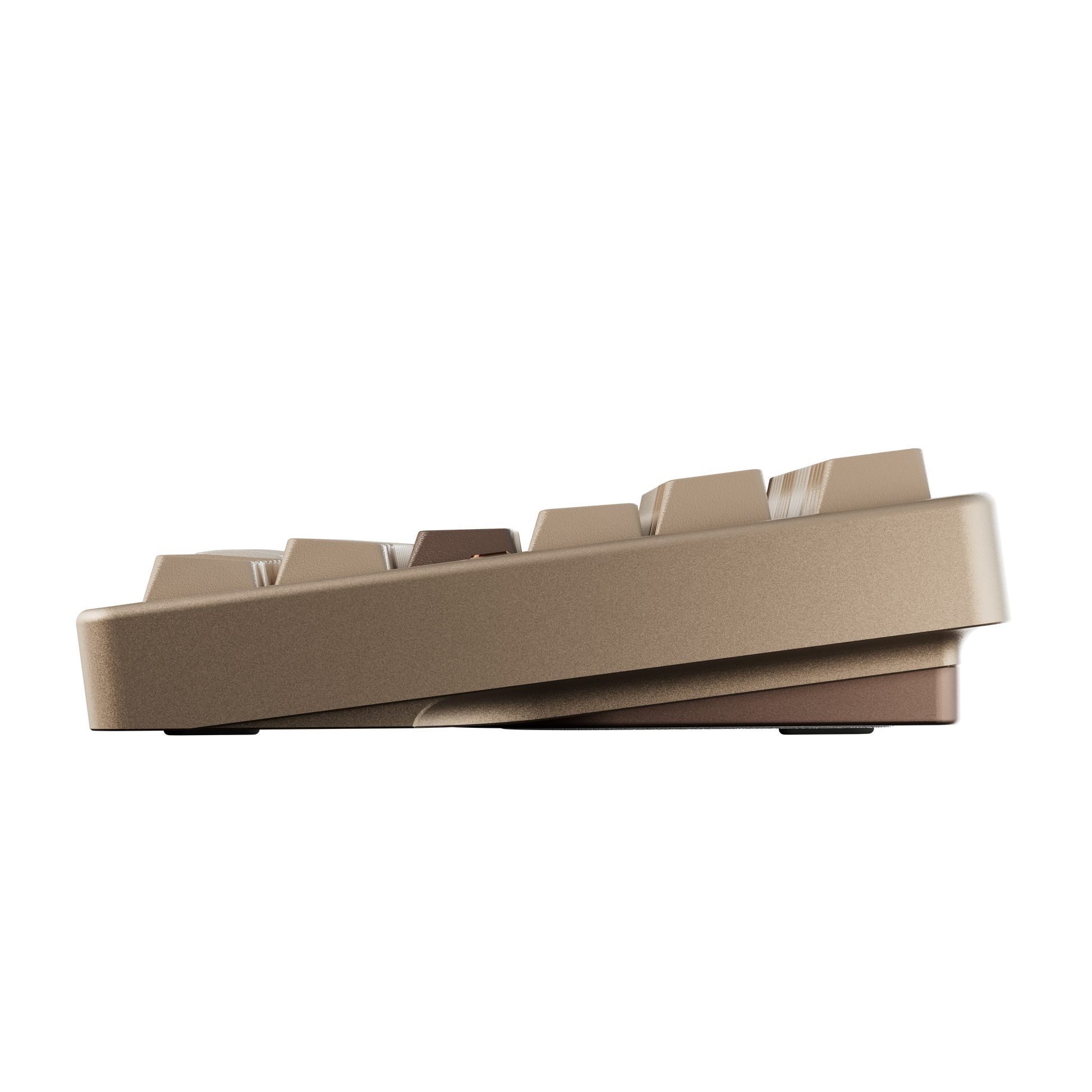

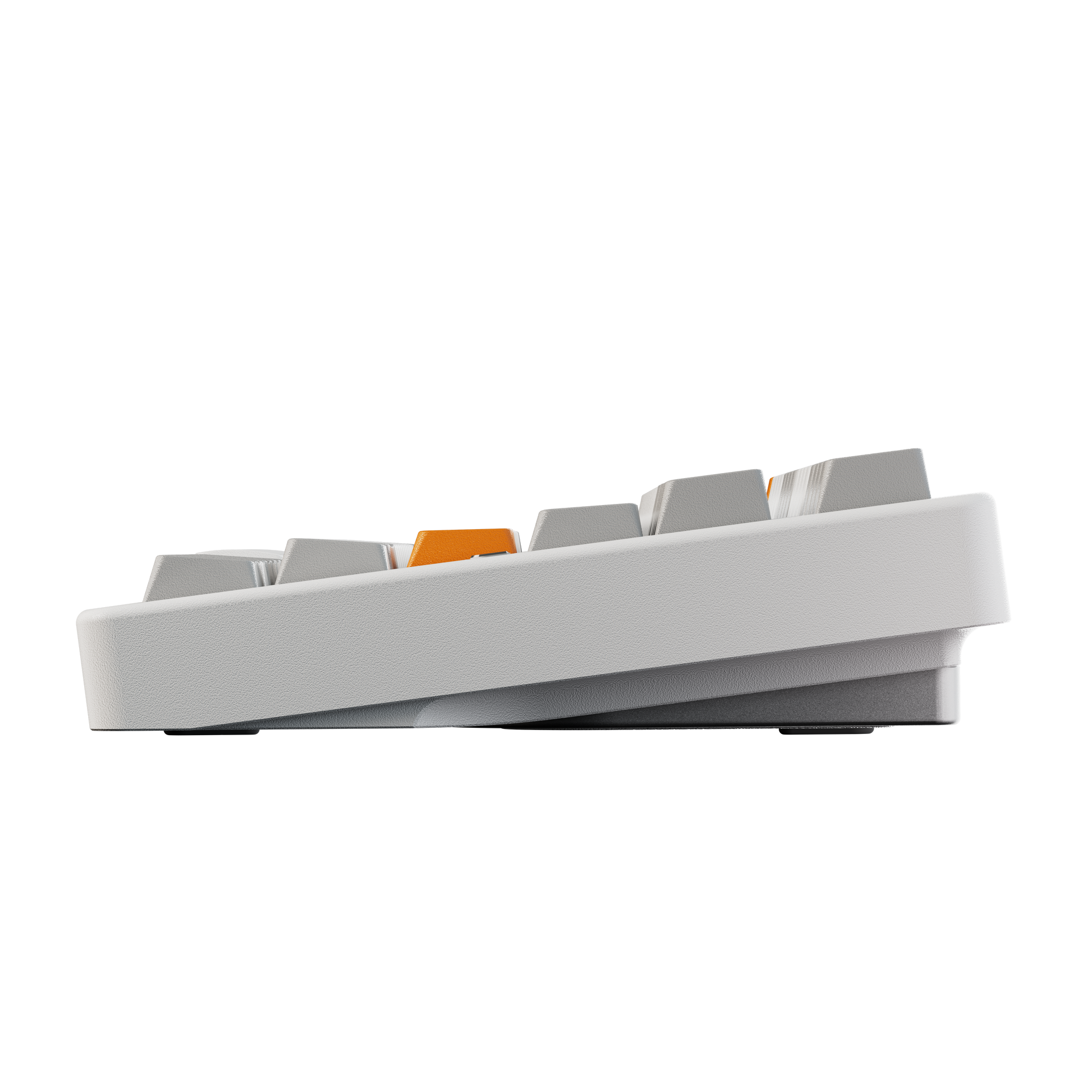

A softer side profile.
The side profile uses a curvilinear contour between the top and bottom cases for a smooth transition. Paired with a uniquely colored battery compartment for each case color, EVO80 looks dynamic and delicate from every angle.

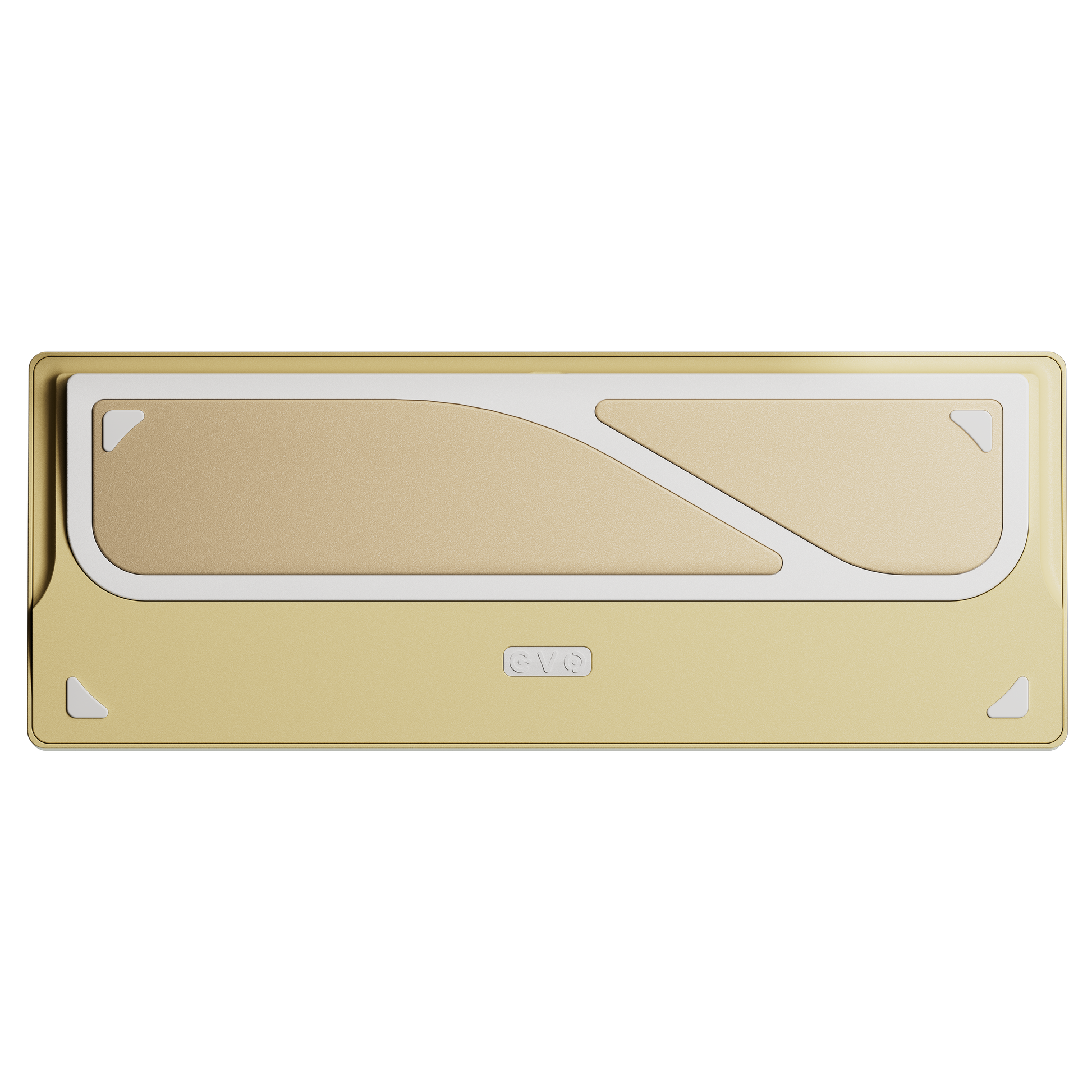

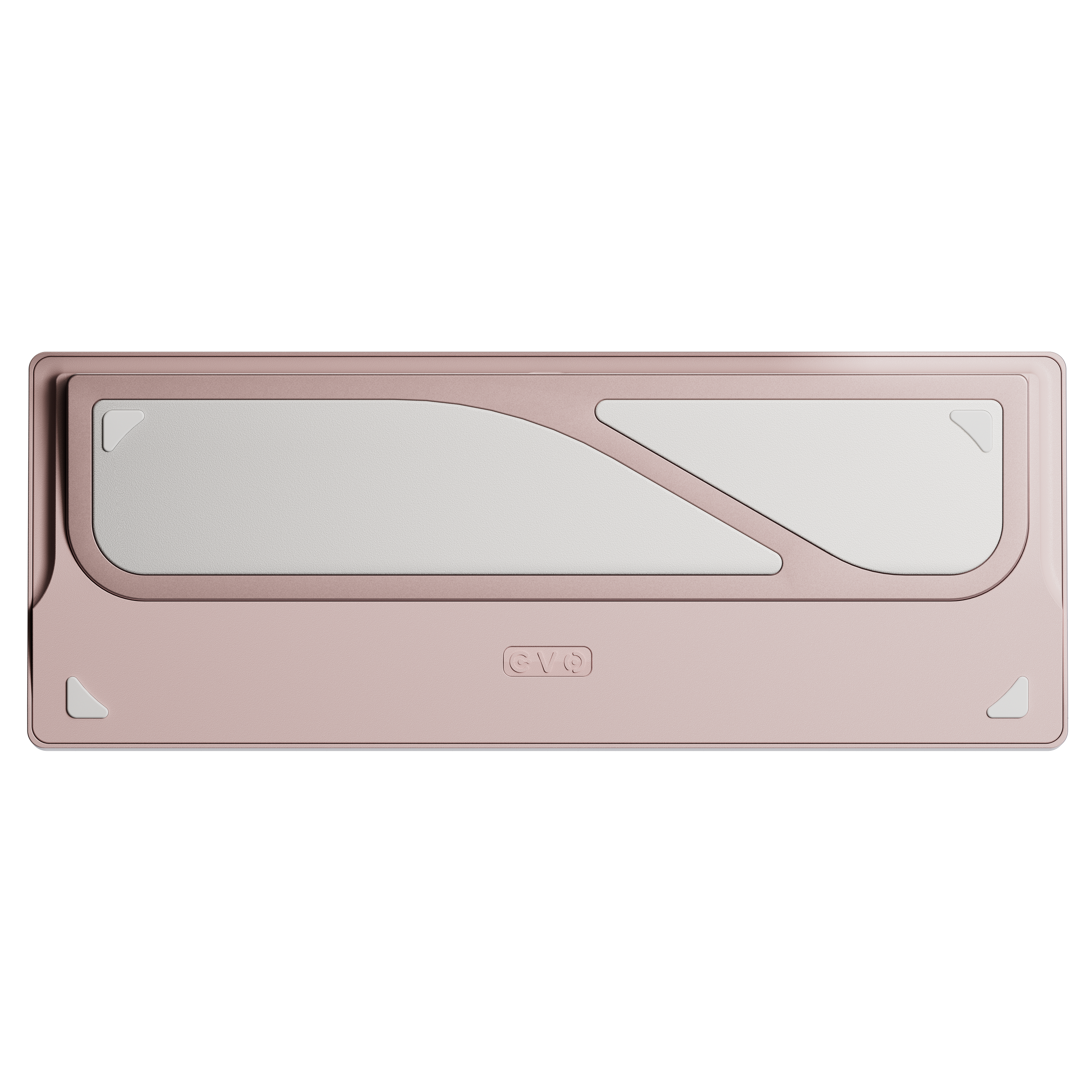

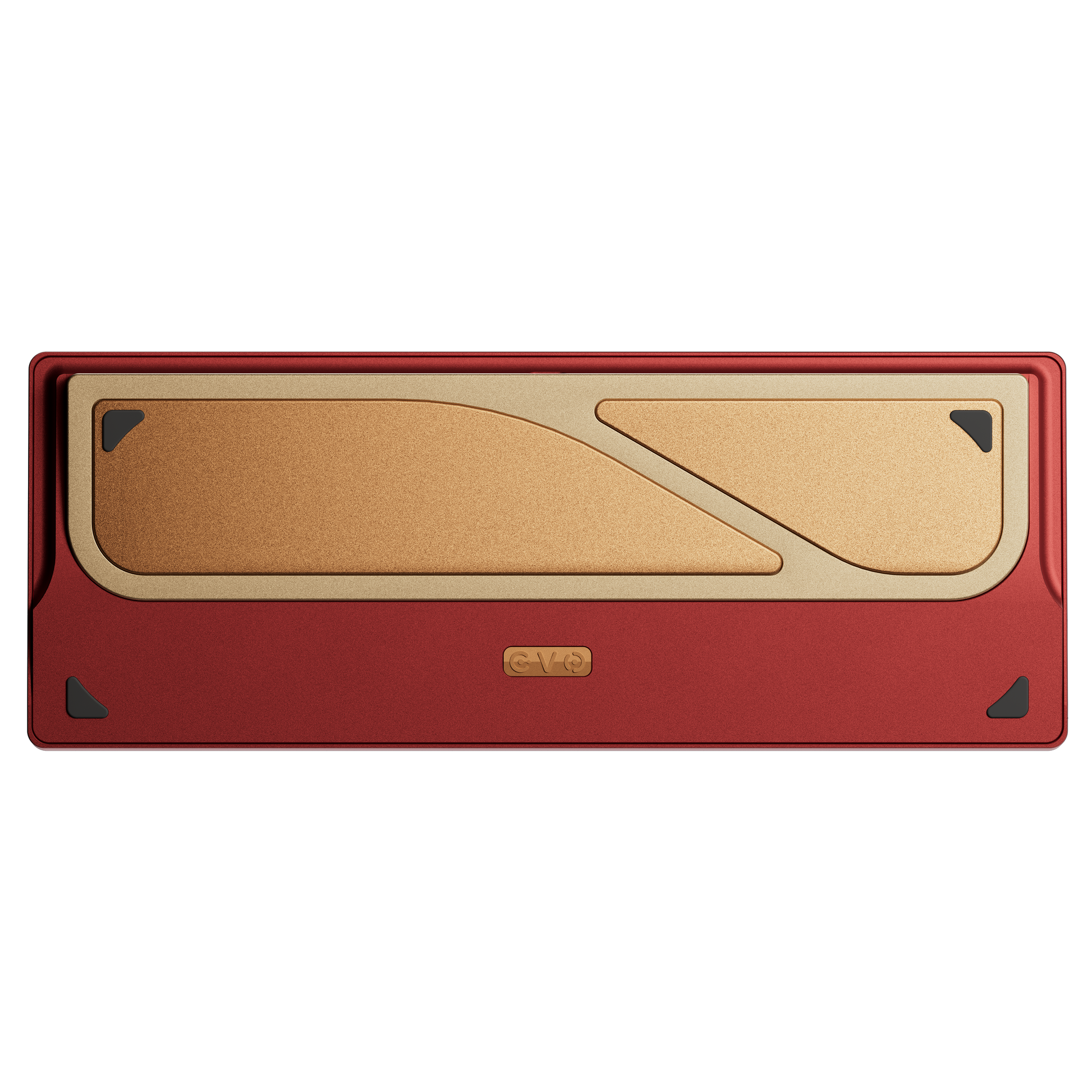

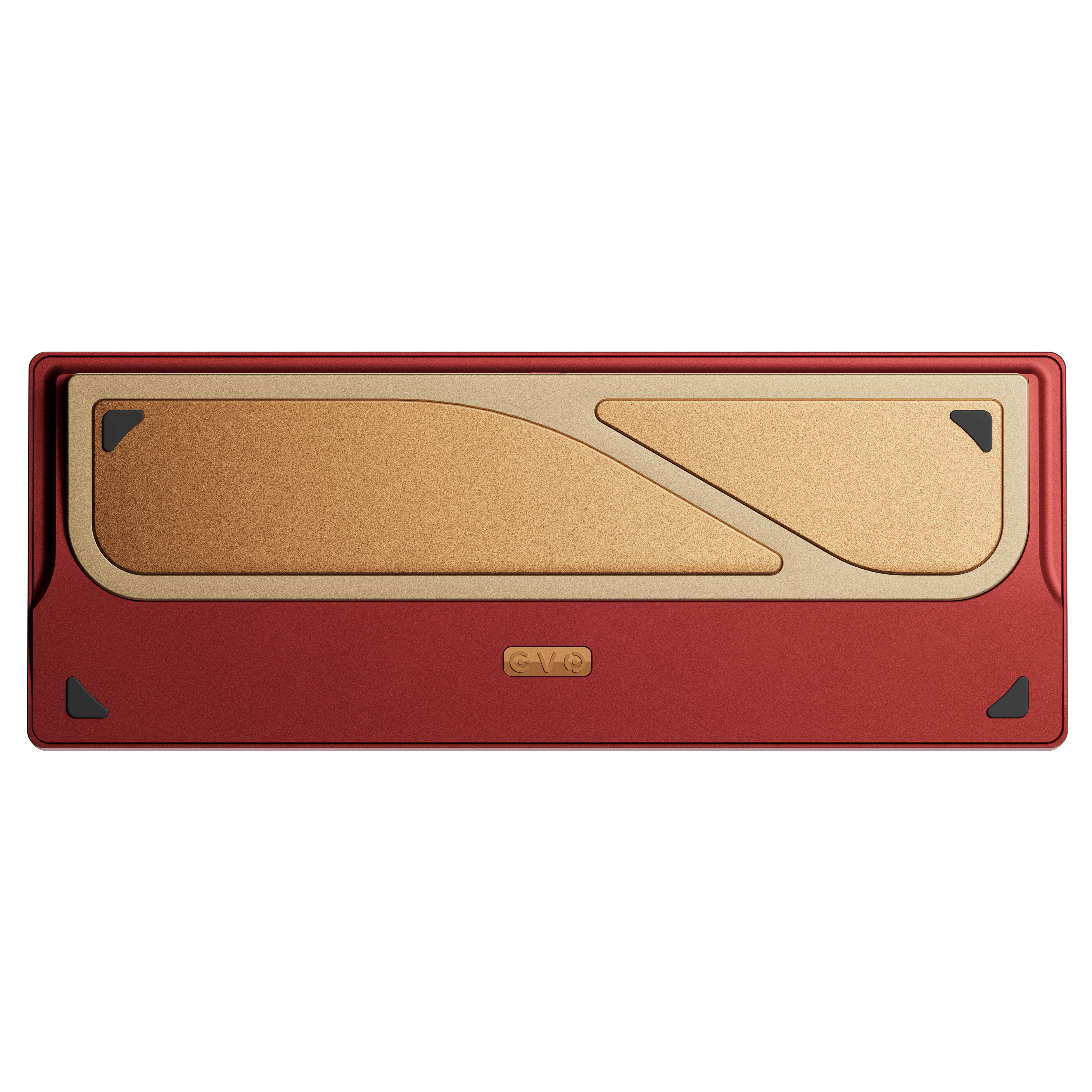

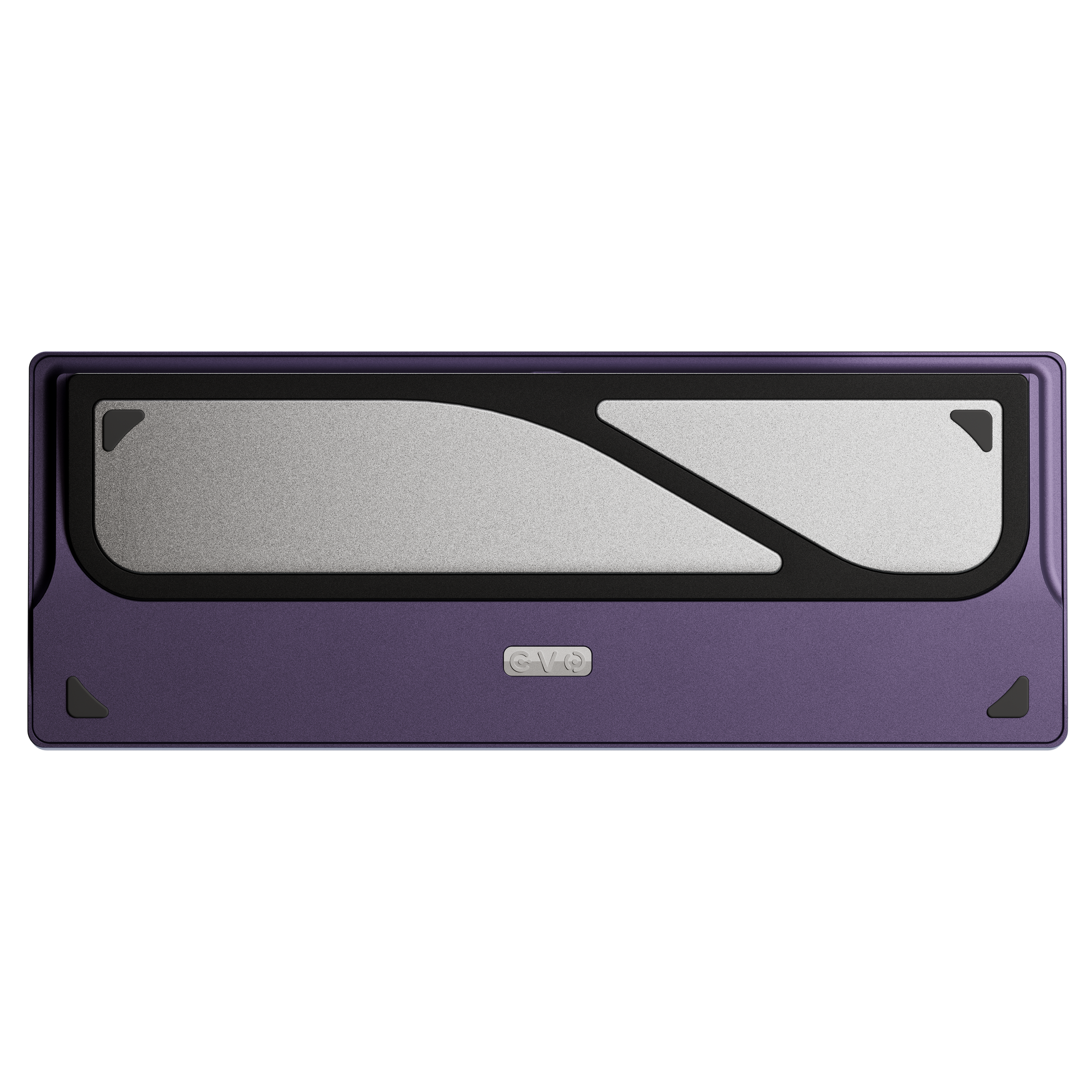

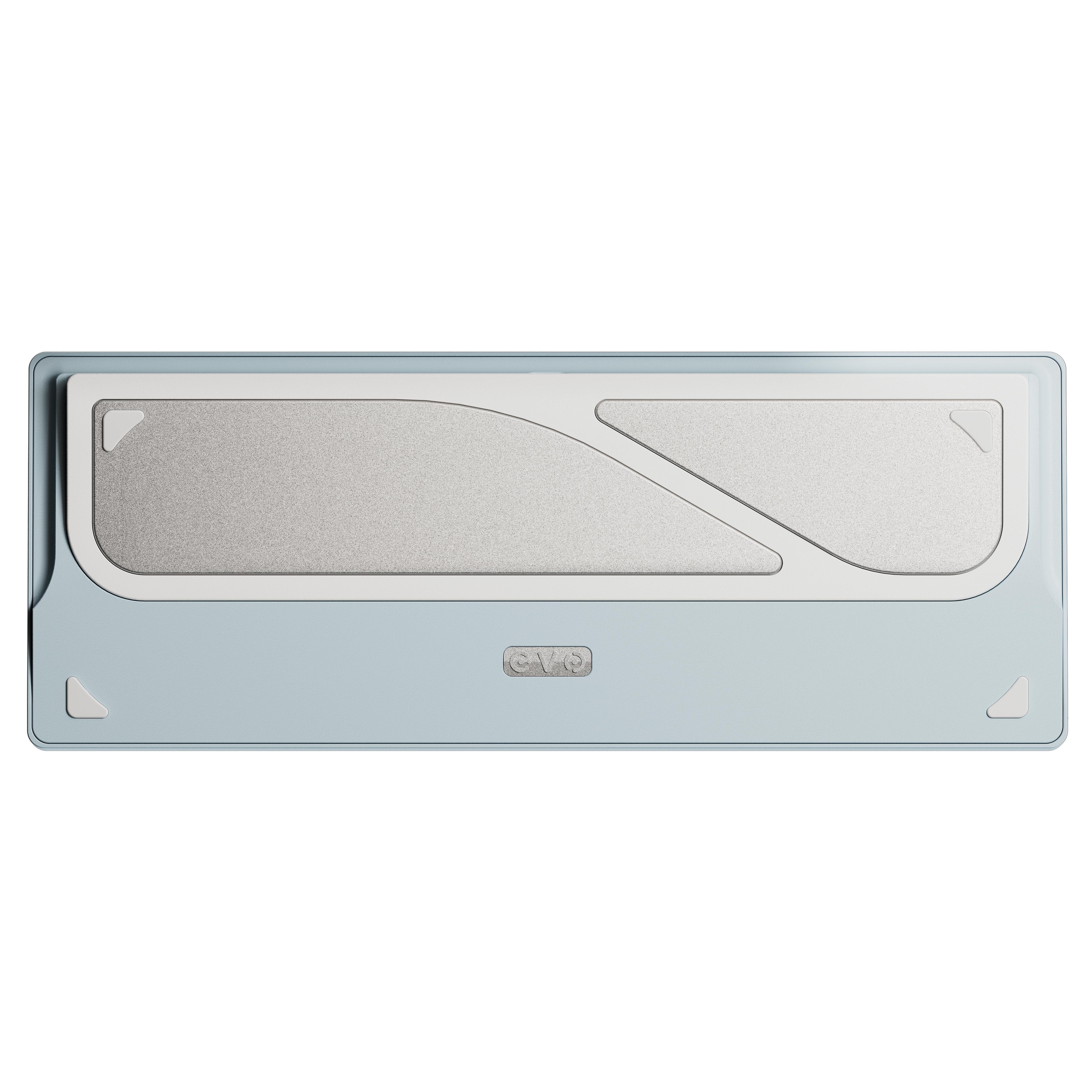

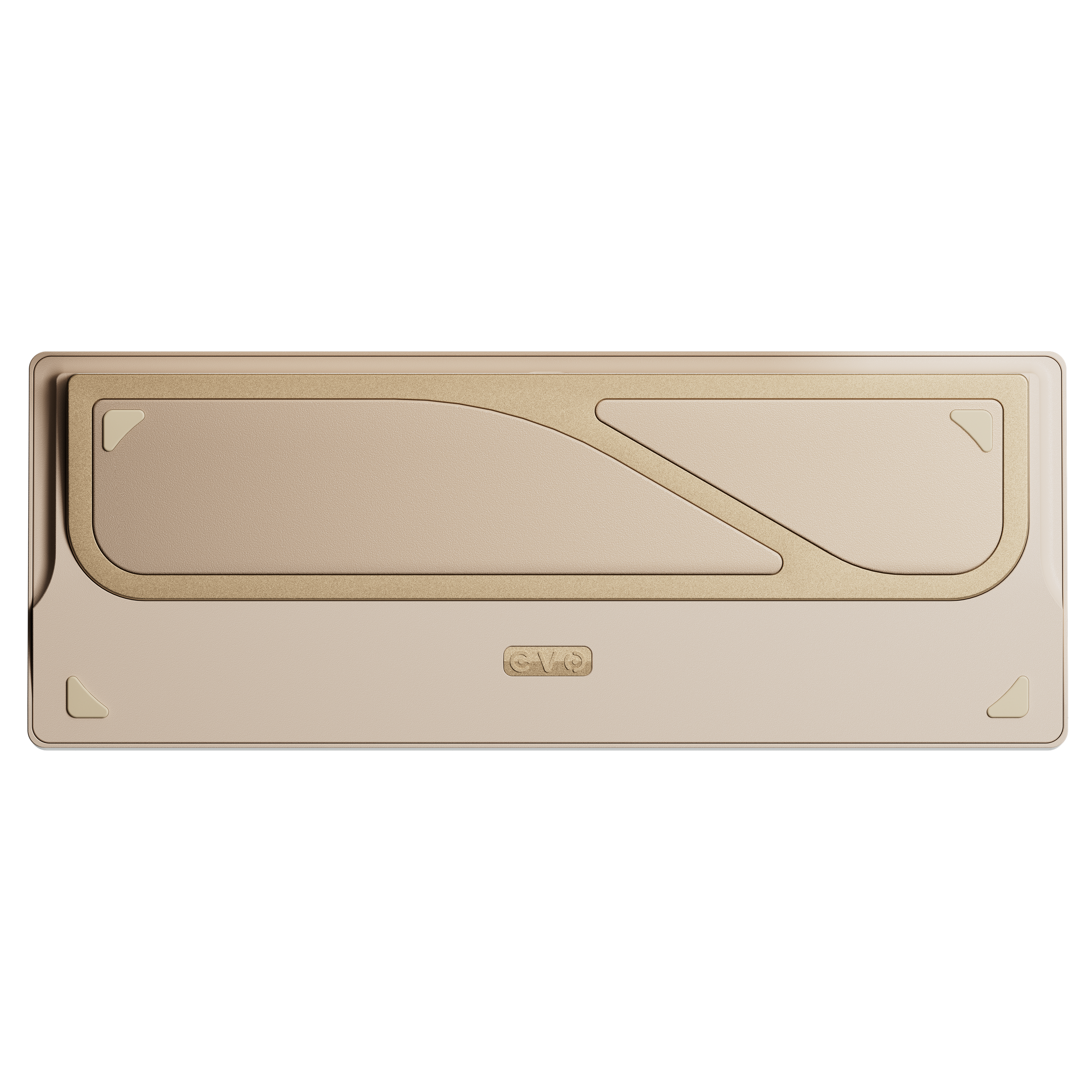

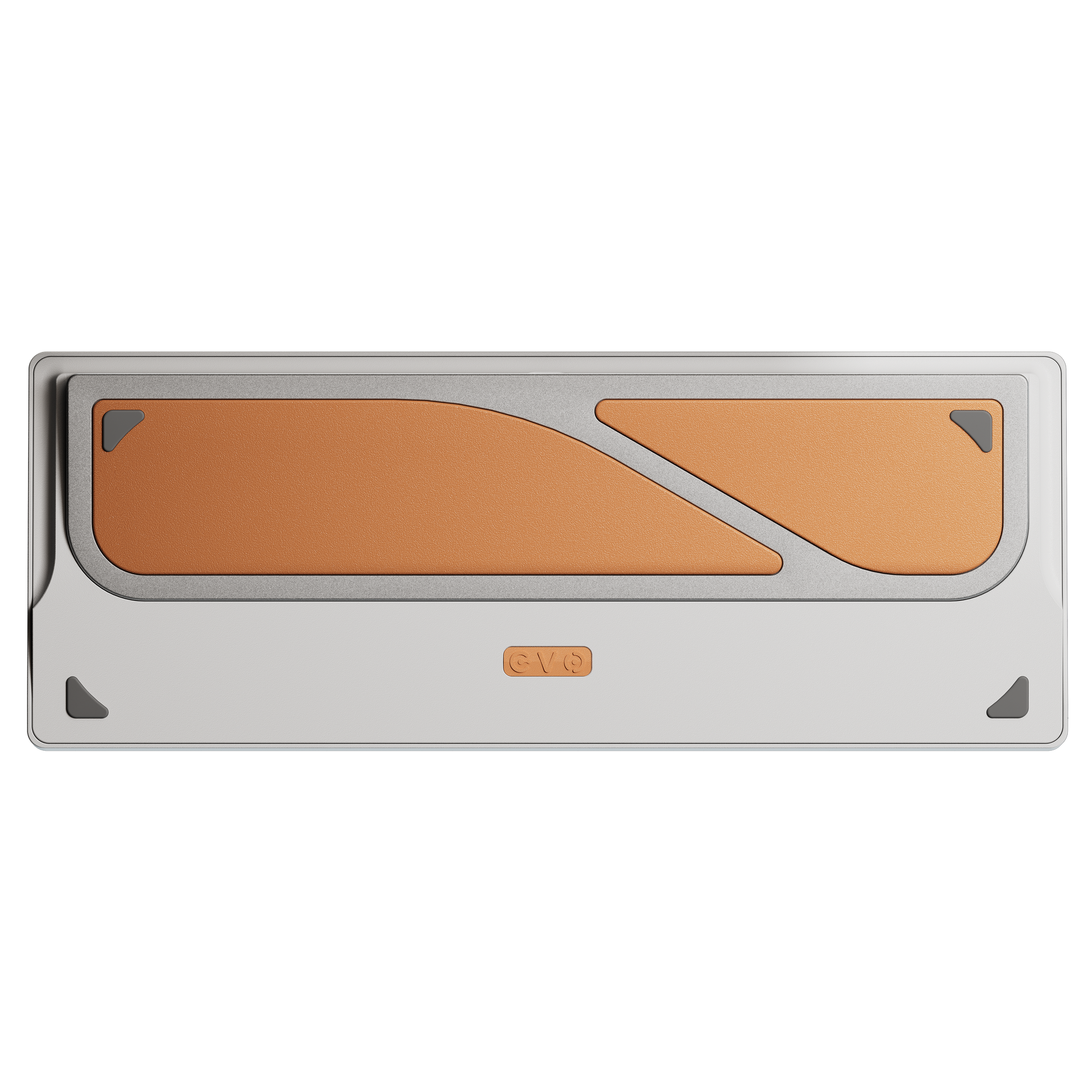

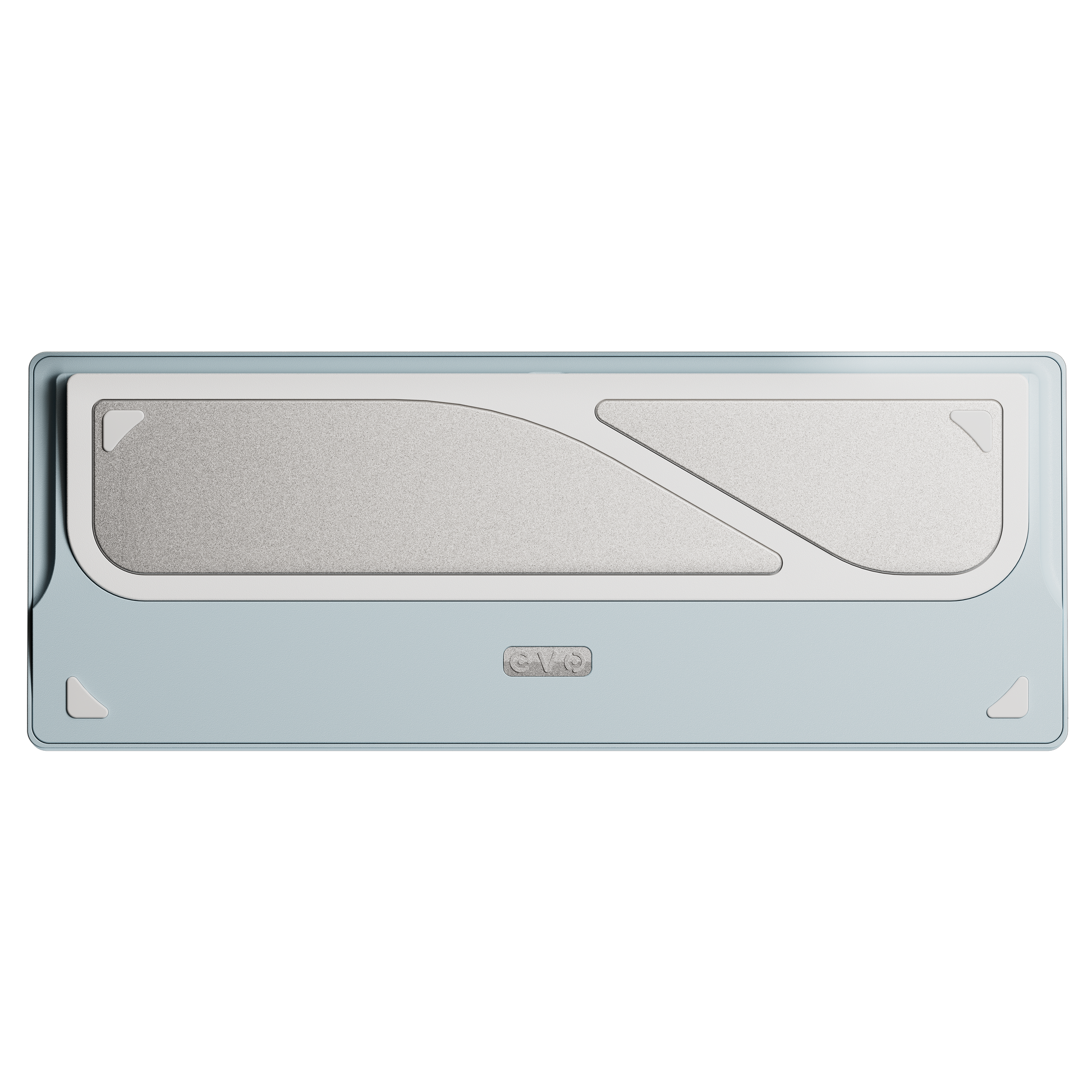

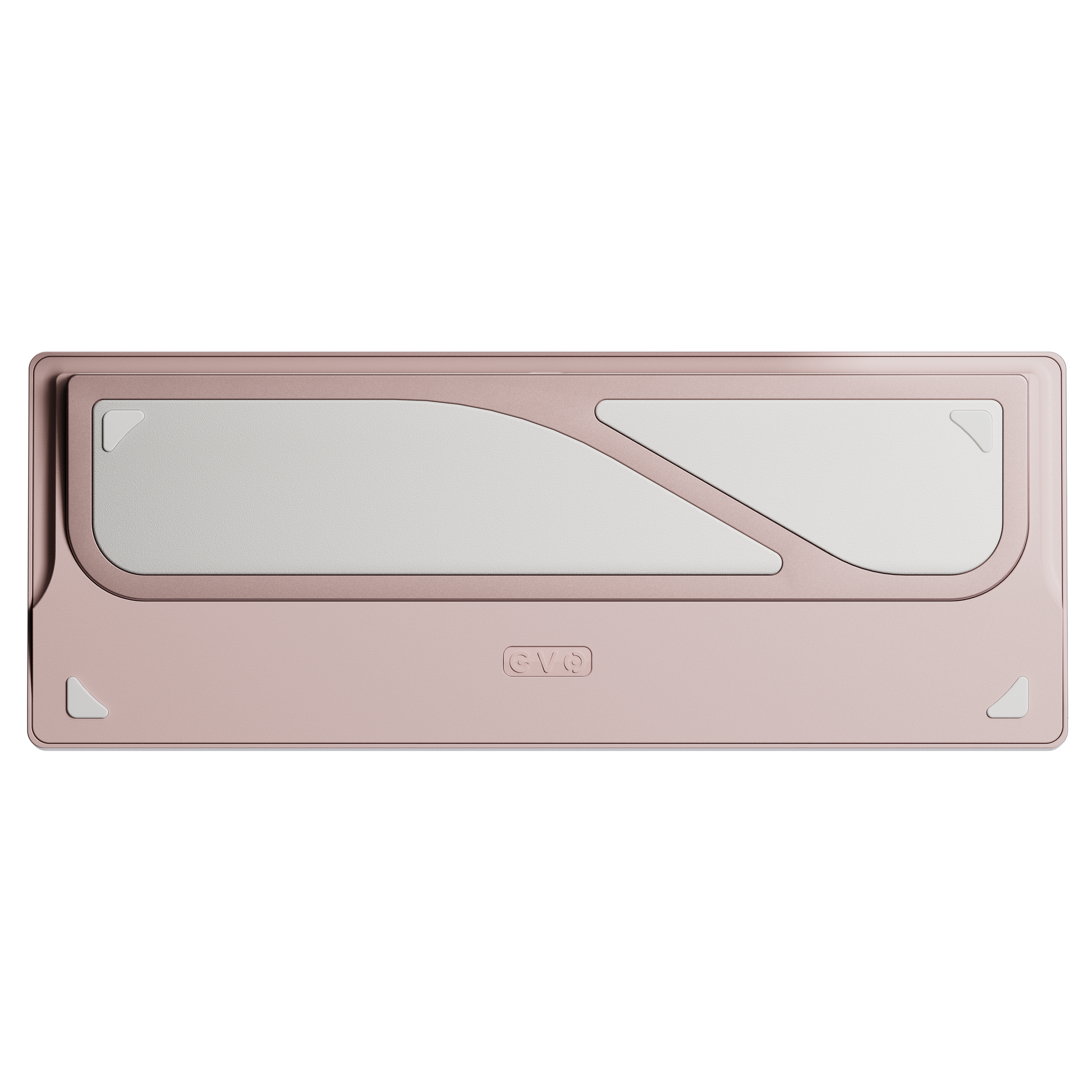

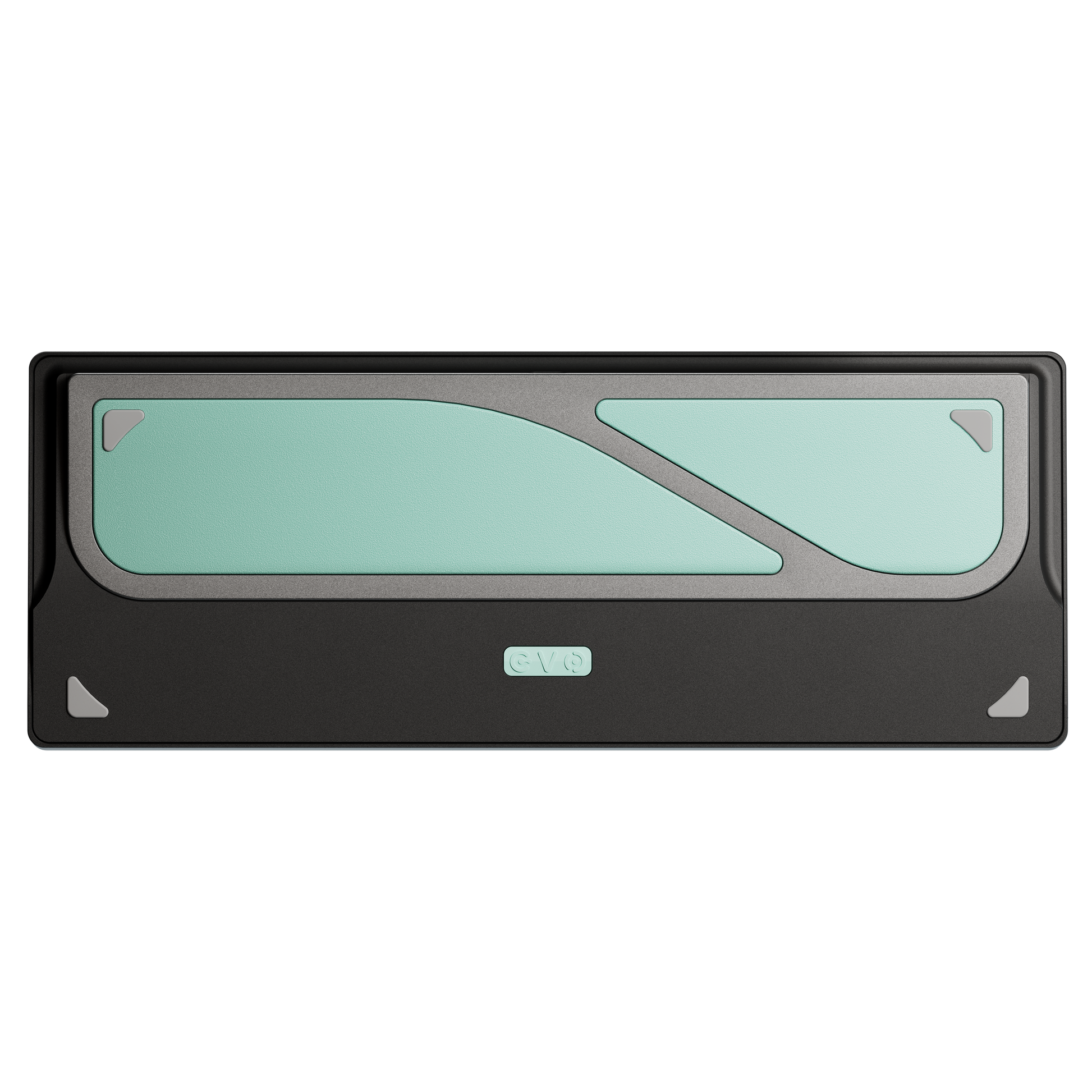

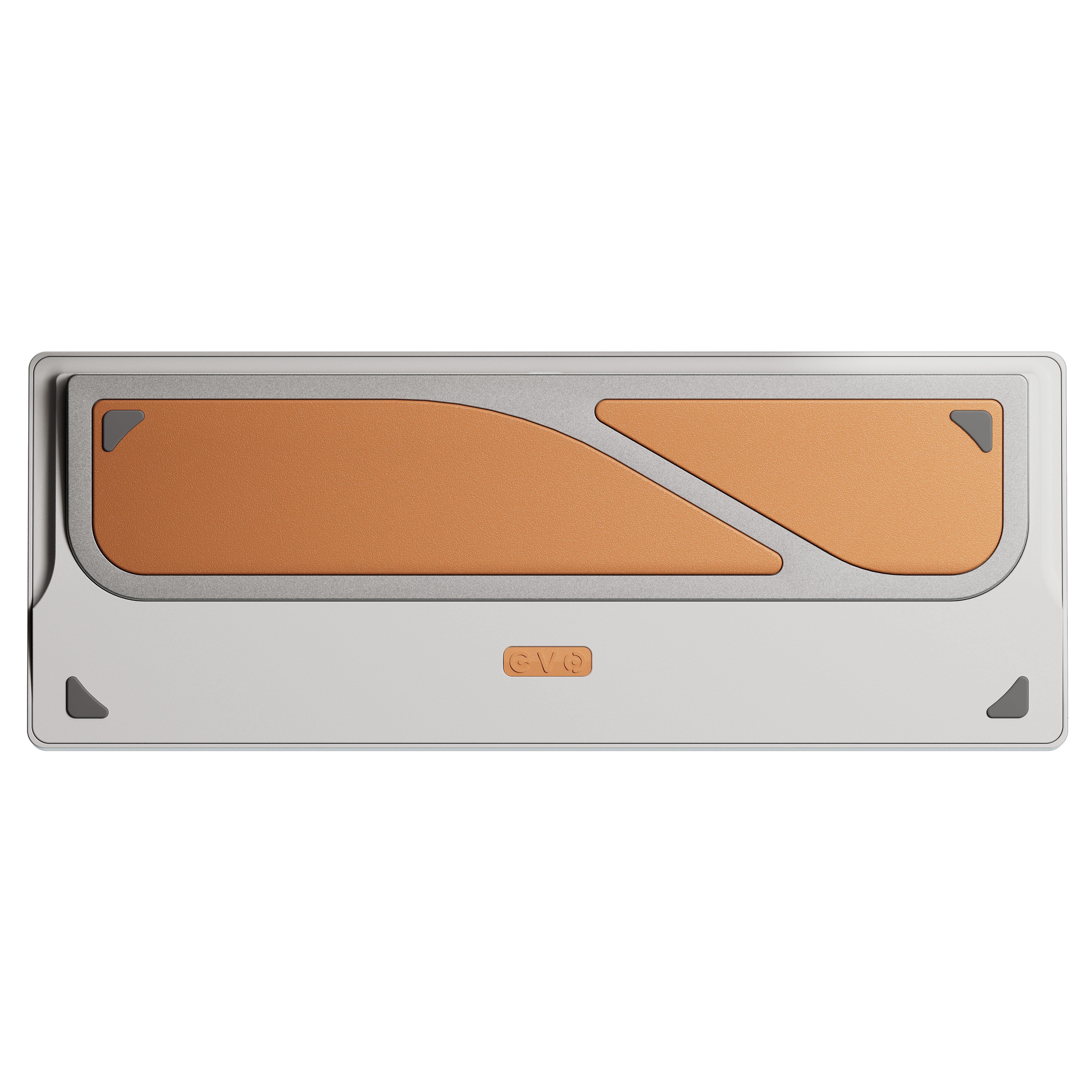

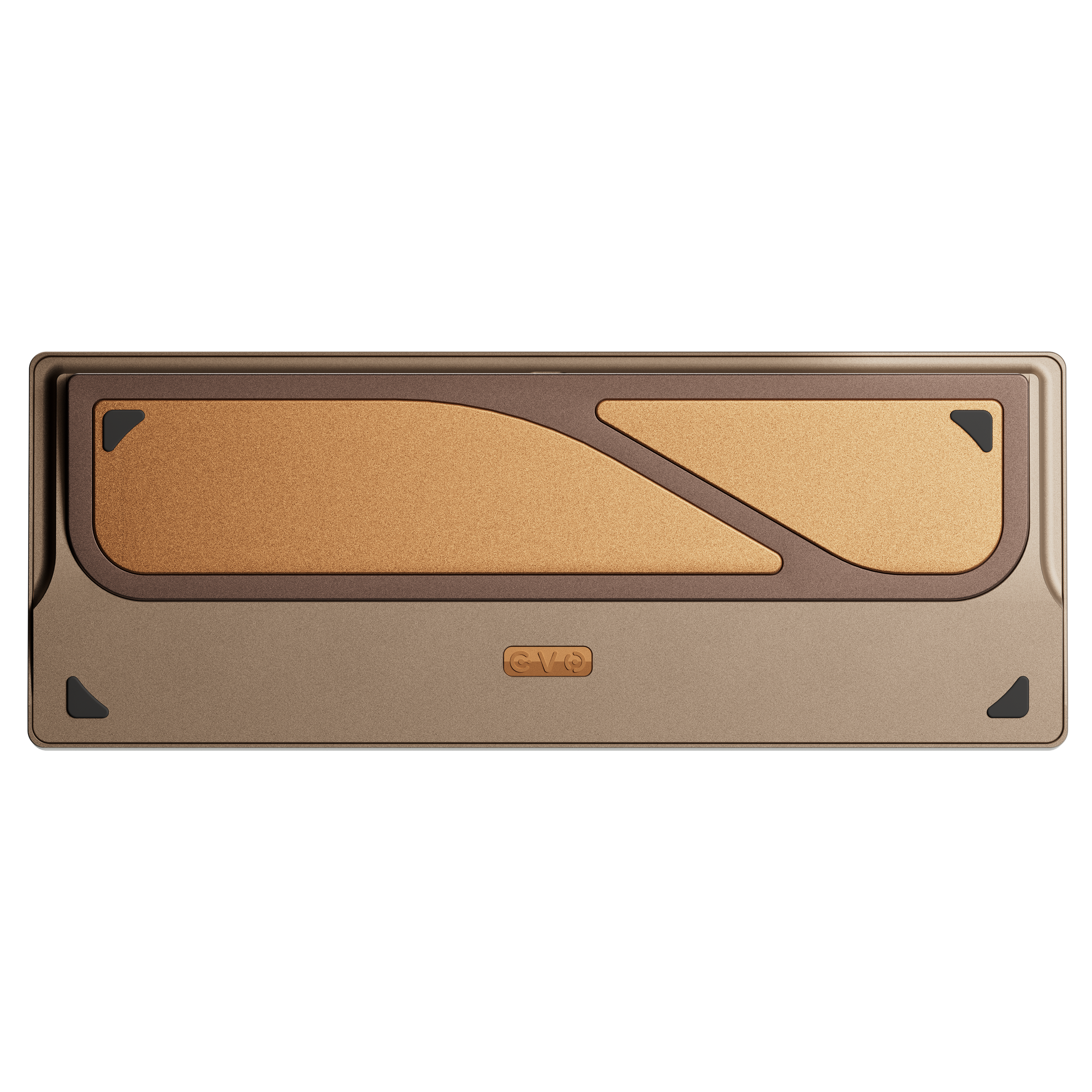

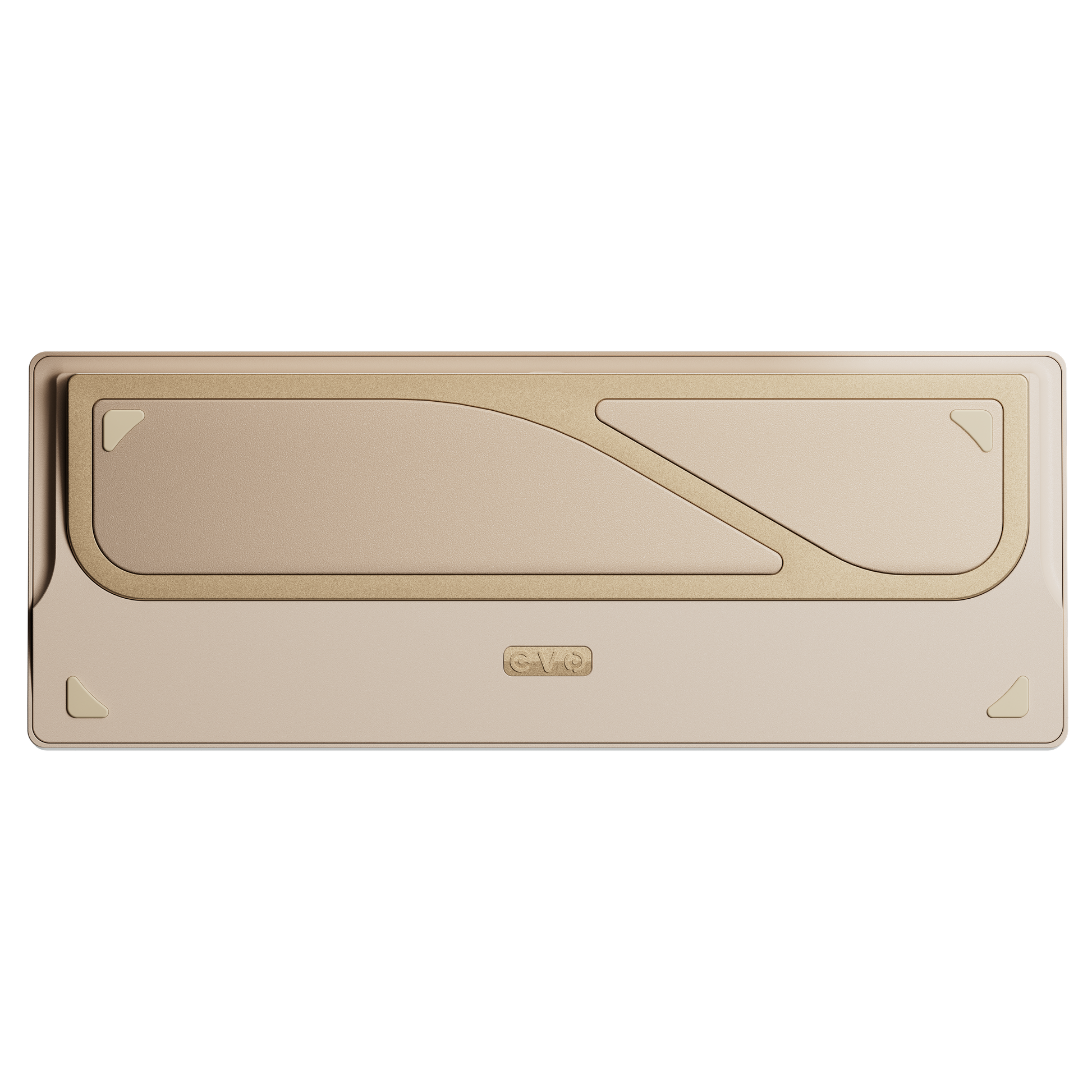

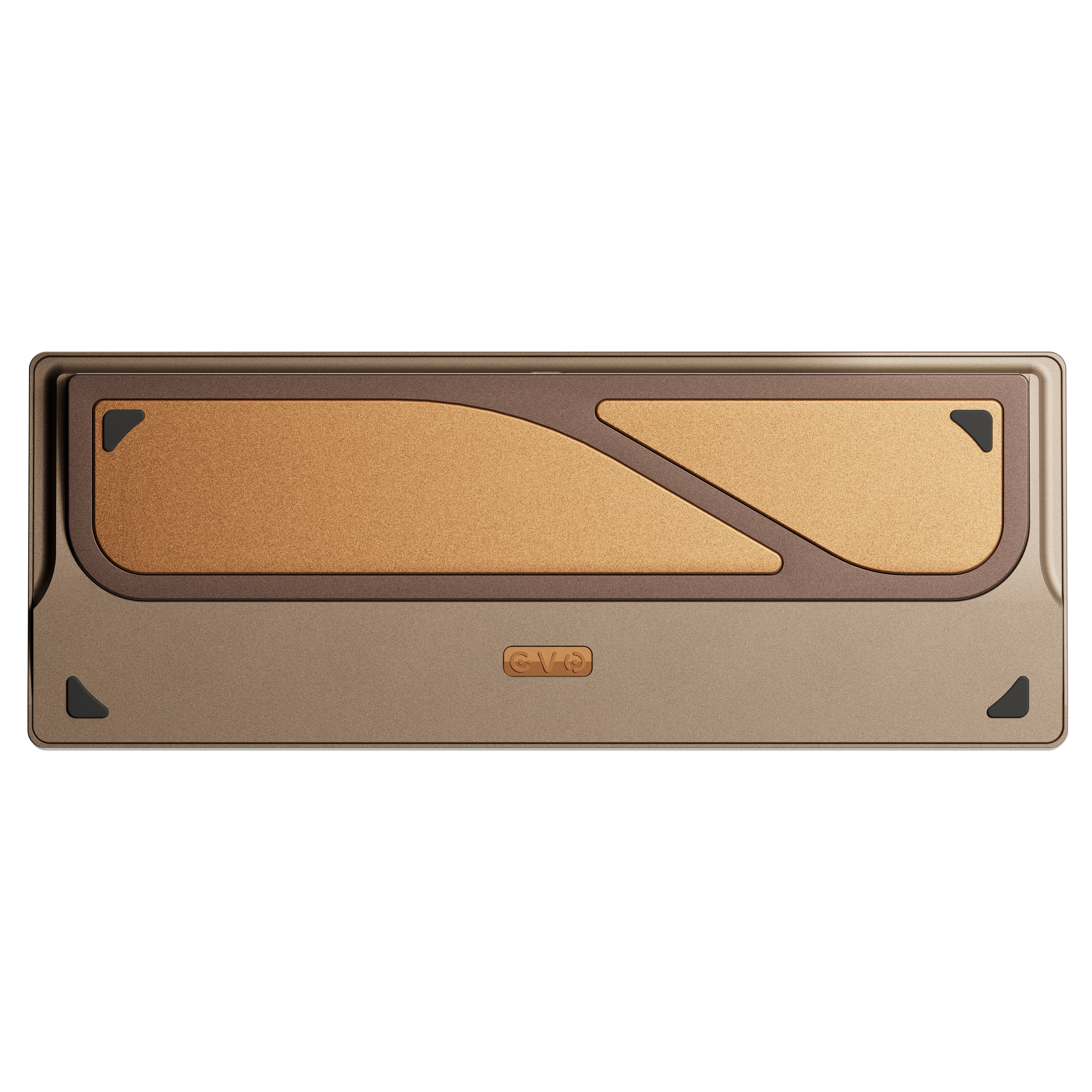

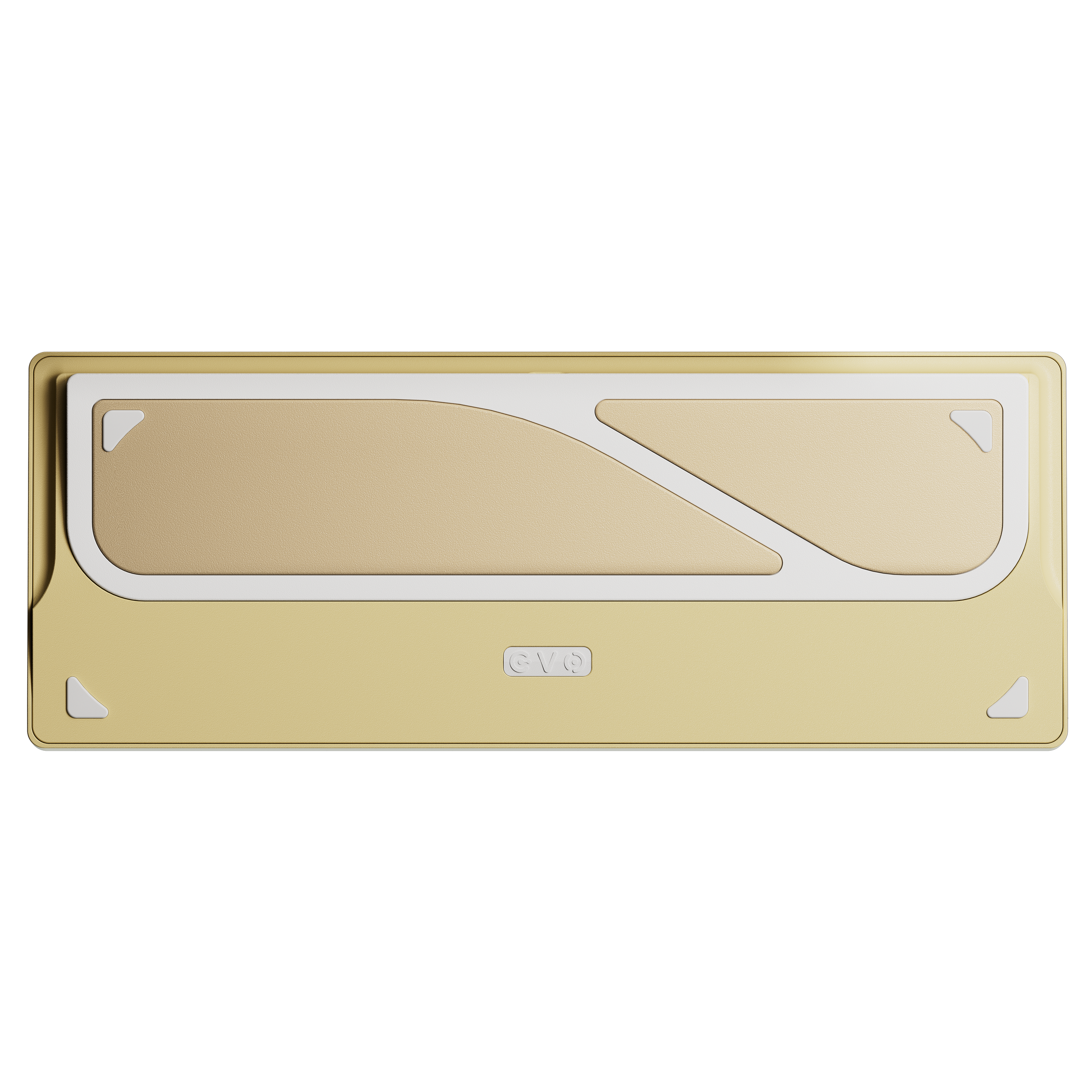

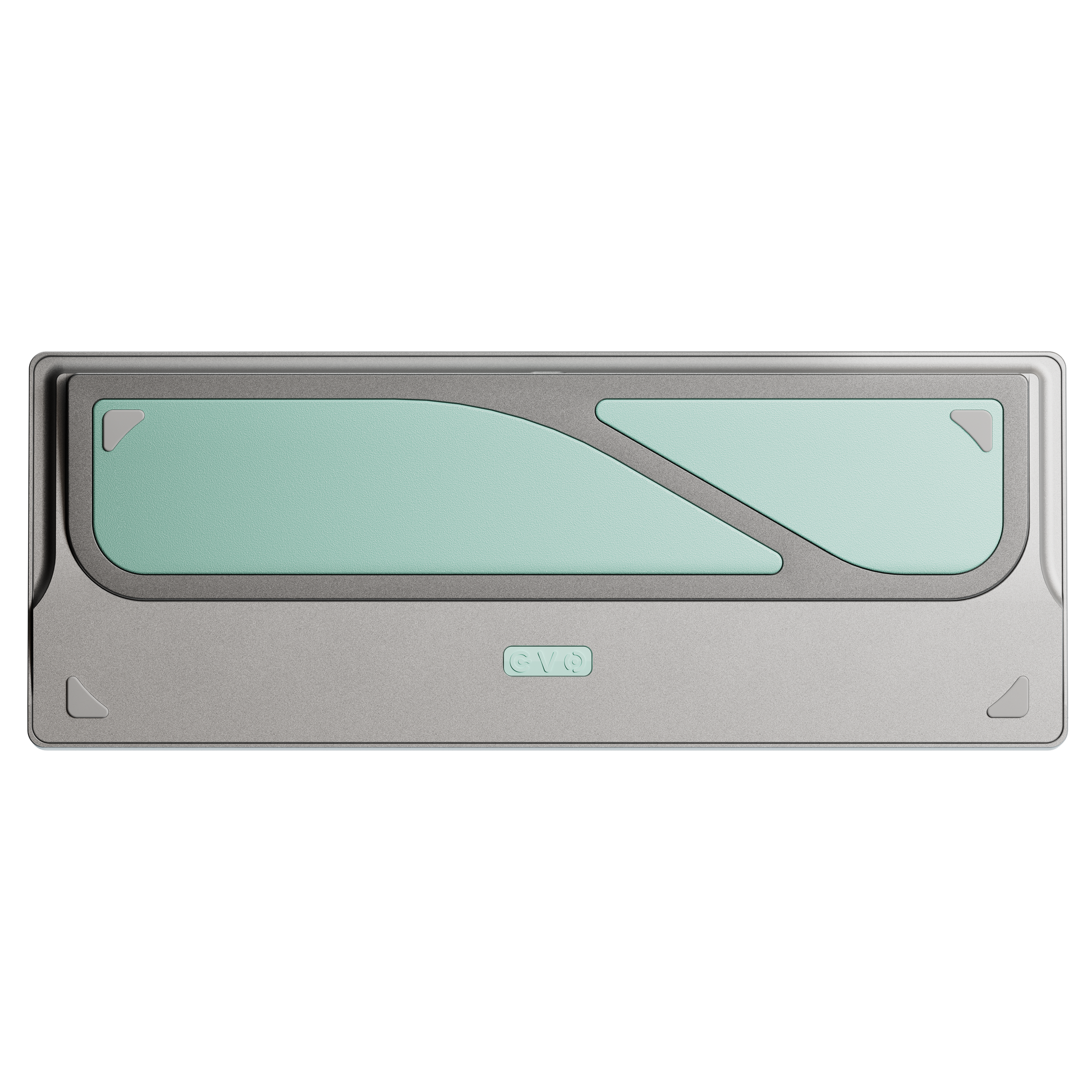

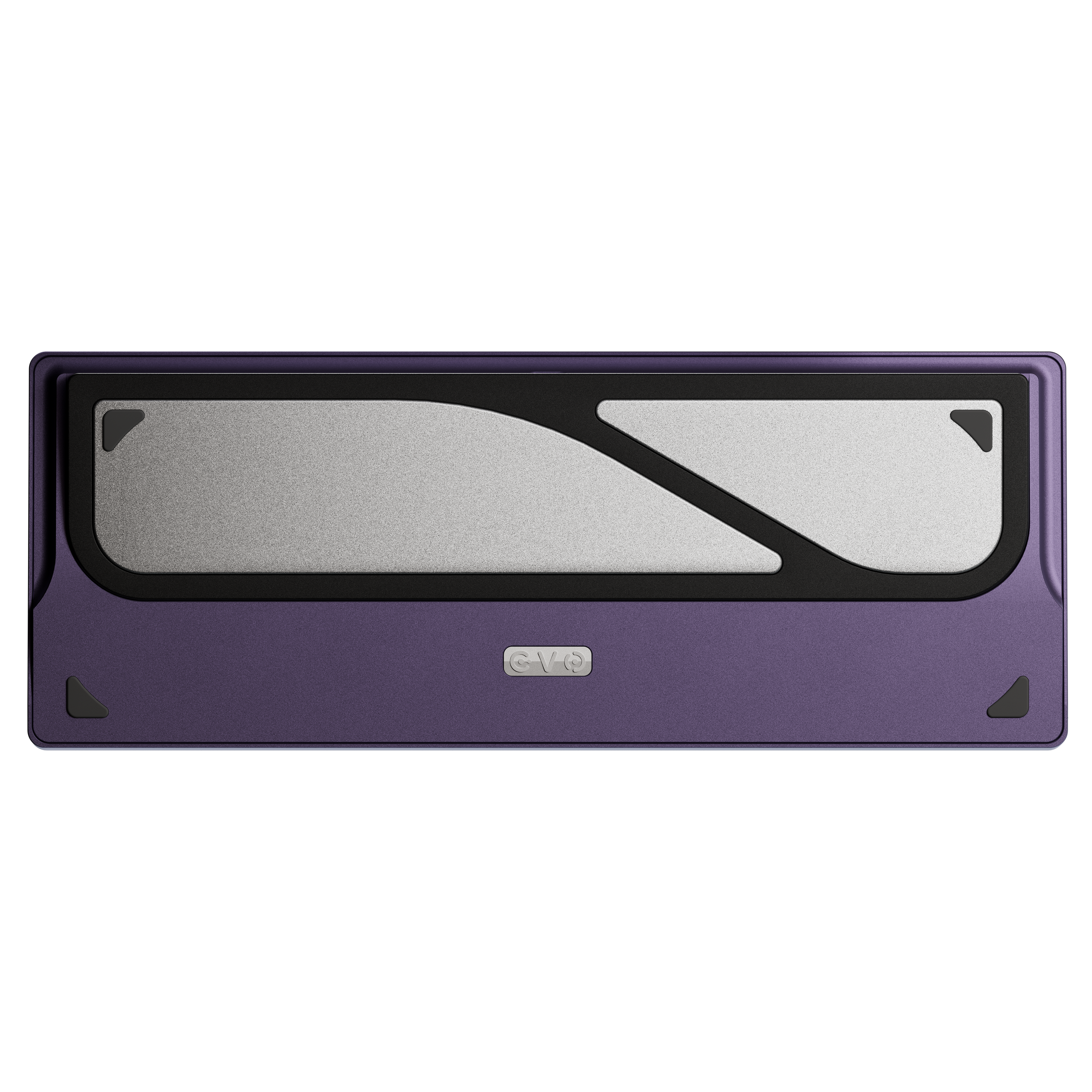

Weight Design

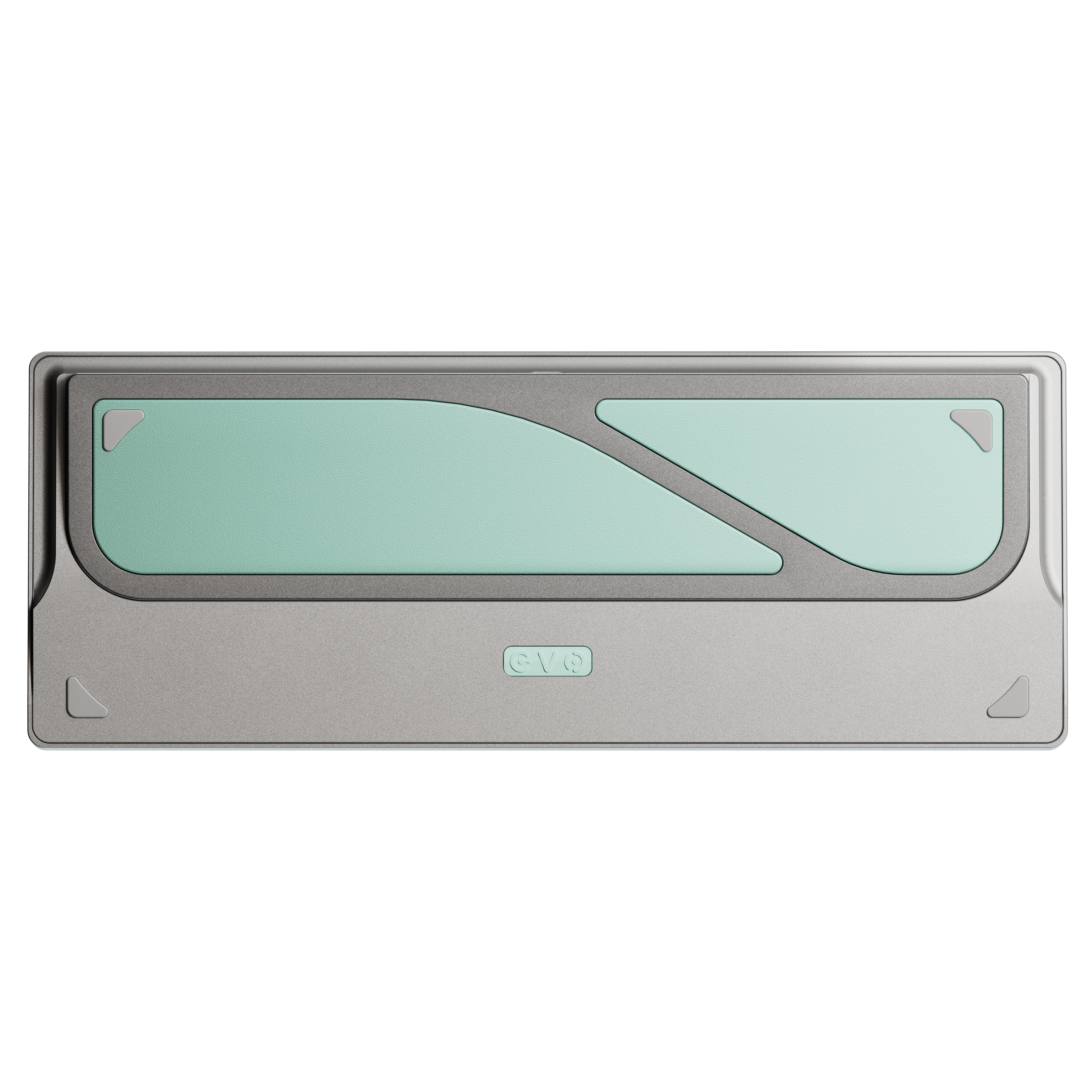

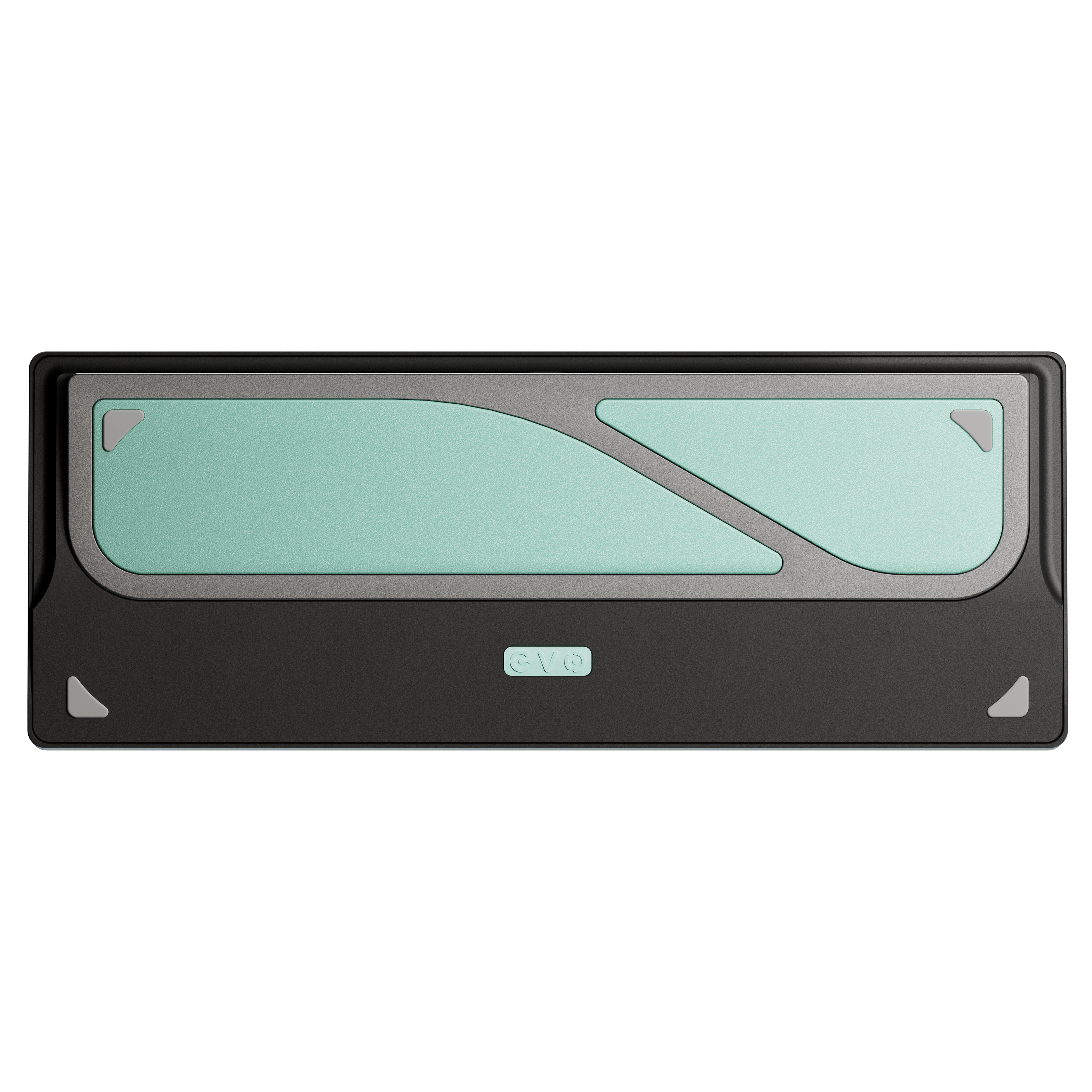

A signature weight, split by proportion.
Instead of using a plain single-piece rectangular weight, EVO80 divides the rear weight into two sections inspired by the golden ratio. Together with the front LED strip, this becomes one of the keyboard’s most memorable design signatures.
Finish & Craftsmanship
Crafted with the same standard of excellence.
Qwertykeys and Neo Studio are known for industry-leading craftsmanship, and Evoworks carries the same commitment forward. EVO80’s anodized cases go through a superior 220-mesh sandblasting process before anodization, while spray-coated versions use ultra-fine coating powders for a smooth and vivid finish.
Vivid surface
Refined finishing gives each color a smooth, clean, and tactile presence.
Desk ready
A calm visual language that fits both focused workspaces and enthusiast setups.
Balanced detail
From top case to accent strip, every visible surface is considered.
Butterfly Leaf Spring
Soft support. Balanced feedback.
EVO80 introduces a new butterfly leaf spring structure by shifting the fulcrum from one end to the middle. Combined with a specially designed gasket, it provides more balanced and stable support for the plate, making typing feedback more consistent across the keyboard.
The gasket cushions the plate and leaf spring to reduce hollow sound, while a silicone dampener helps control resonance between the spring and bottom case.
Effortless Disassembly
Open, customize, rebuild.
EVO80 retains the well-received ball-catch mechanism and magnetic connectors from Neo Studio. Open the case with a simple press and lift, no tools required. It is ready to use out of the box, yet easy to maintain, tune, and customize.
PCB & Connectivity
Ready for every setup.
EVO80 comes with a tri-mode ANSI hotswap PCB, supporting USB-C, Bluetooth, and 2.4GHz wireless connection. With per-key RGB, NKRO, VIA compatibility, and dual 4000mAh batteries, it is built for both performance and convenience.
Core Specs
| Size | 357mm × 136.4mm |
|---|---|
| Front Height | 18mm |
| Layout | TKL 80% + F13 |
| Net Weight | 1870g |
| Case Material | CNC-machined 6063 aluminum |
| Keycaps | Dye-Sub PBT |
PCB & Wireless
| PCB | Tri-mode ANSI Hotswap |
|---|---|
| RGB | Per-key RGB |
| Rollover | NKRO |
| Polling Rate | Wired / 2.4GHz: 1000Hz · Bluetooth: 125Hz |
| Software | VIA Compatible |
| Connection | USB-C / Bluetooth / 2.4GHz |
| Battery | Dual 4000mAh batteries with NTC fast-charging core chips |
| Plate + Switch | FR4 + Azure Linear Switches / PP + Oat Linear Switches |
| Case Color | Anodized: Tyrian, Sandgold, Scarlet, Ink, Nimbus. Spray-coat: Spark, Cream, Butter Yellow, Babypink, Iceberg. |
Acoustic Performance
A sound profile designed from the inside out.
EVO80’s acoustic package is custom-designed around its specific case structure and internal components. Through careful material selection and refined cutout design, it delivers the intended sound profile with clarity, depth, and consistency.
Plate + Switch
Two tuned typing experiences.
To simplify the choice for both enthusiasts and newcomers, EVO80 offers two carefully tuned switch and plate pairings. Each combination is engineered around sound, structure, and lubrication for impressive performance right out of the box.
Azure Linear Switches + FR4 Plate
Crisp, refreshing, and clacky. A lively sound profile with clear feedback and satisfying character.
Oat Linear Switches + PP Plate
Rounded, creamy, and marbly. A deeper, thockier typing sound with a softer acoustic texture.
Switch Structure
Built for stable, expressive feedback.
The switch structure is tuned to complement the selected plate material, helping EVO80 deliver a clear sound profile and a controlled bottom-out feel right out of the box.
Keycaps
Cherry profile Dye-Sub PBT keycaps.
EVO80 uses Dye-Sub PBT keycaps to enhance the characteristics of the switches and bring out the sound of the internal structure. Newly developed molds help improve previous internal housing issues, while the Cherry profile offers a familiar and comfortable typing experience from the first use.

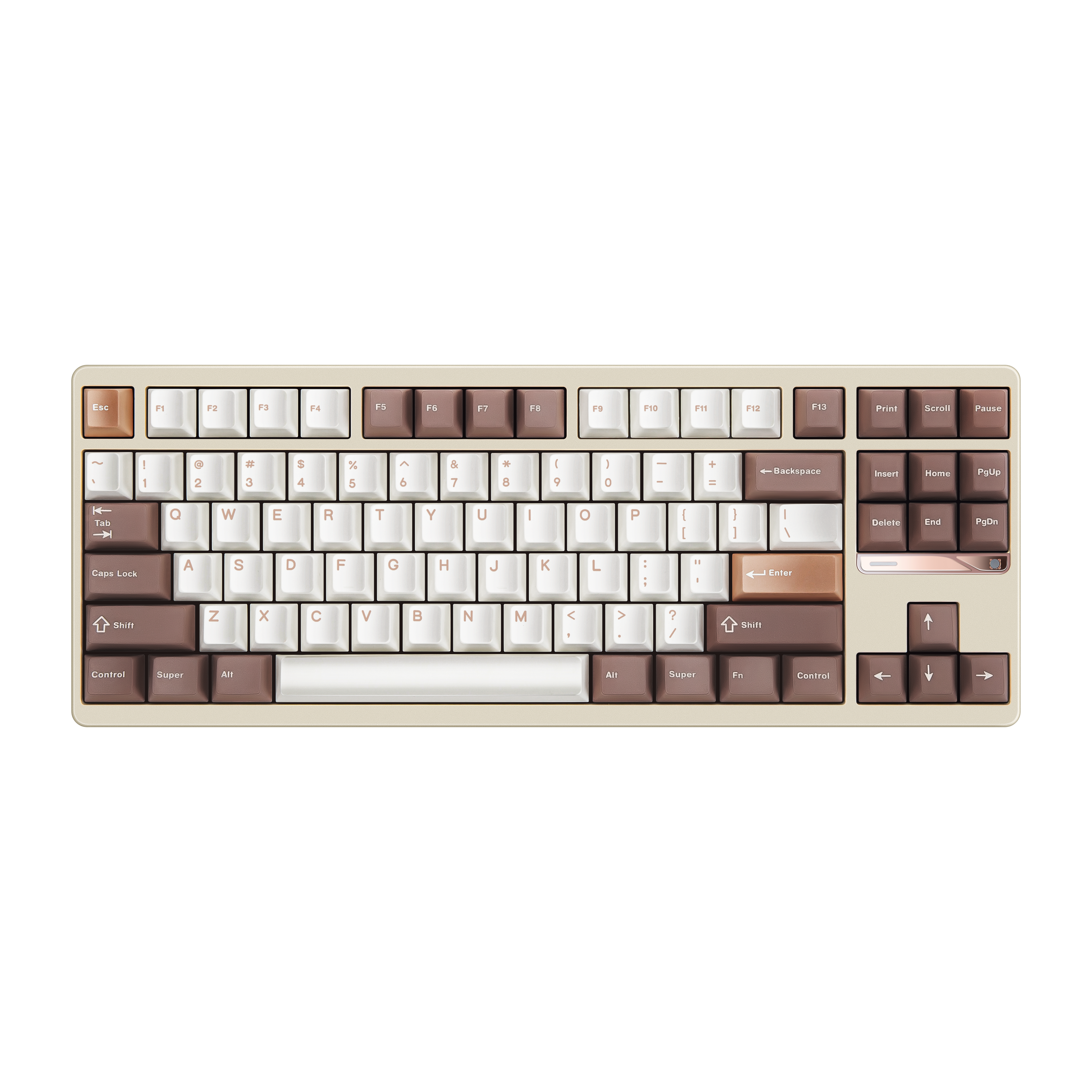

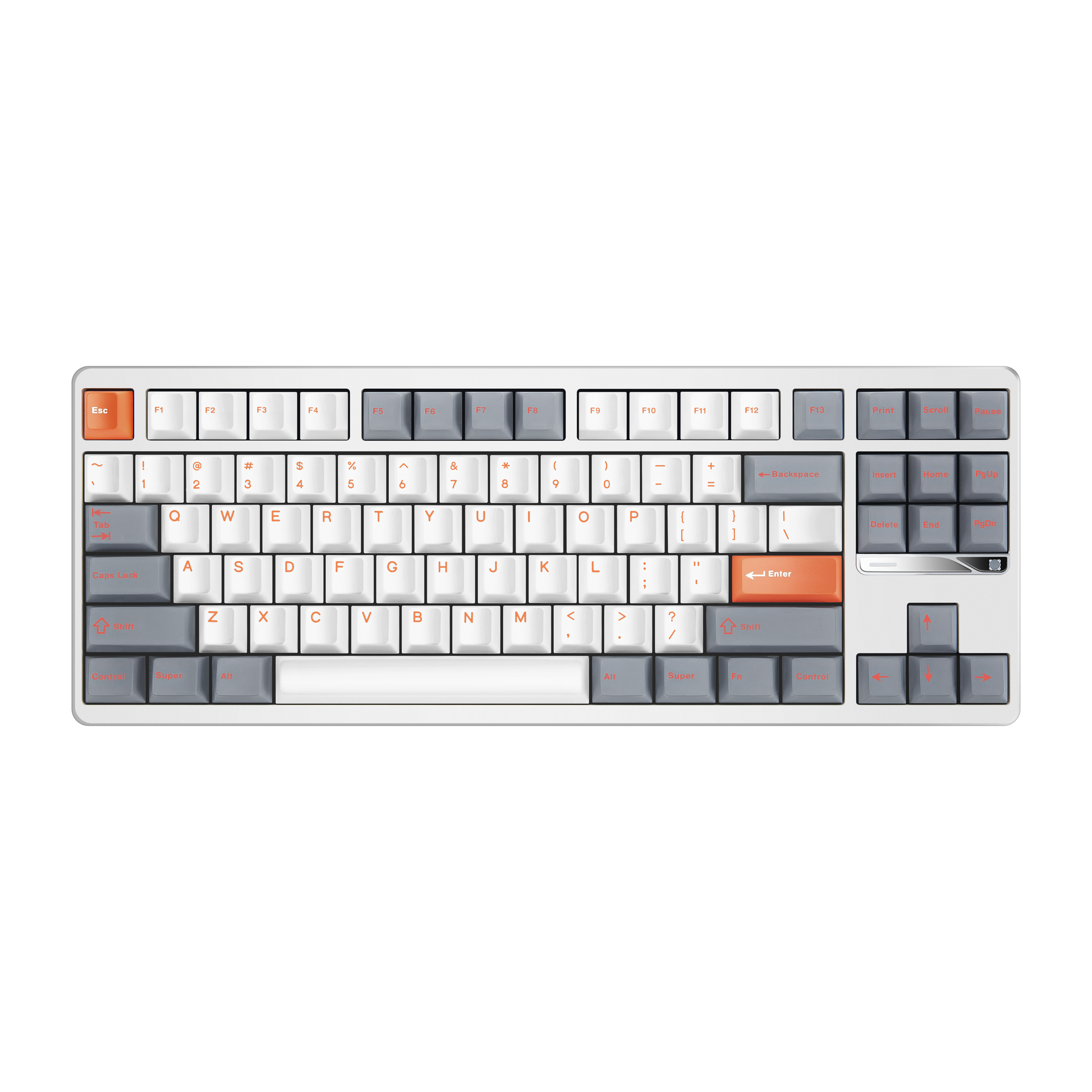

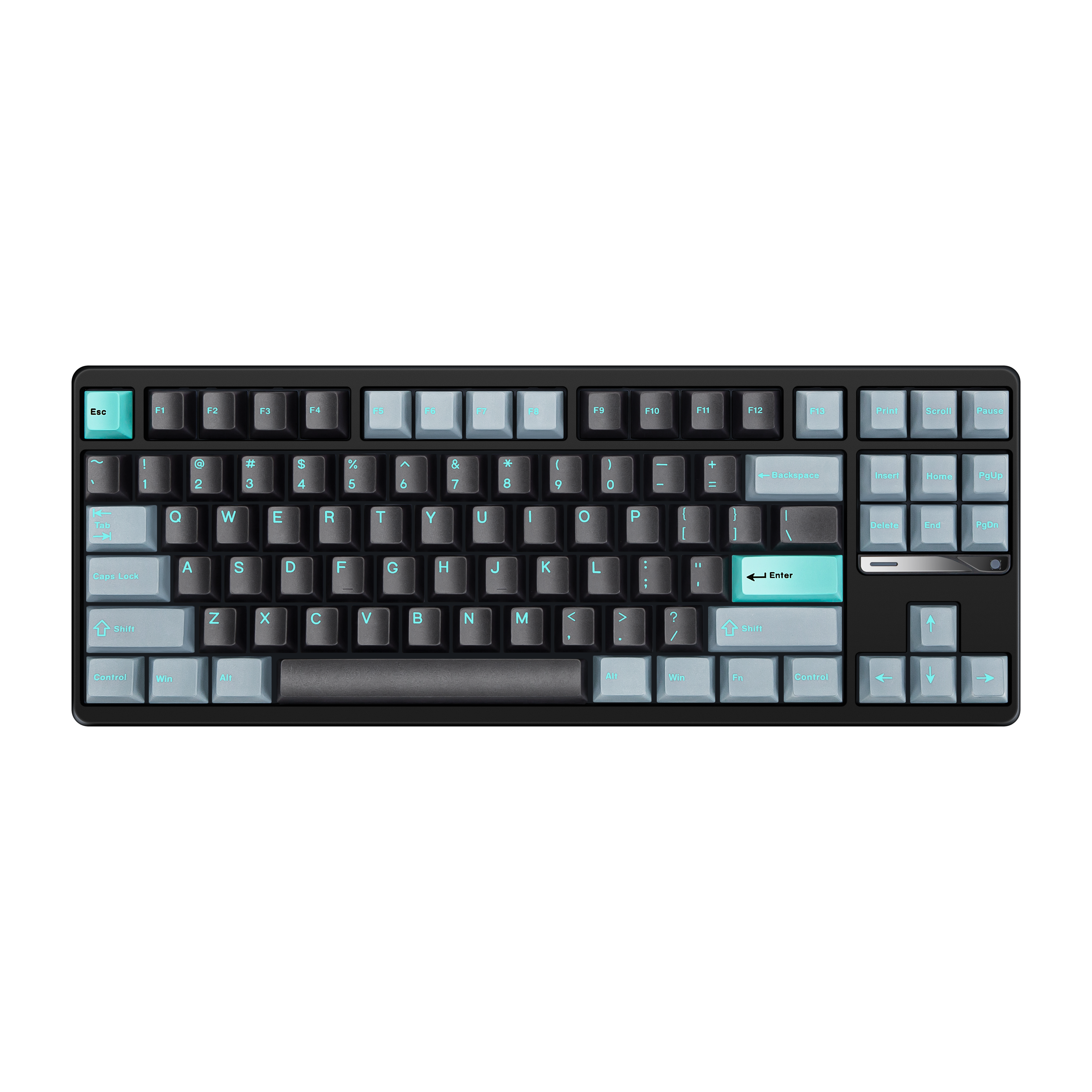

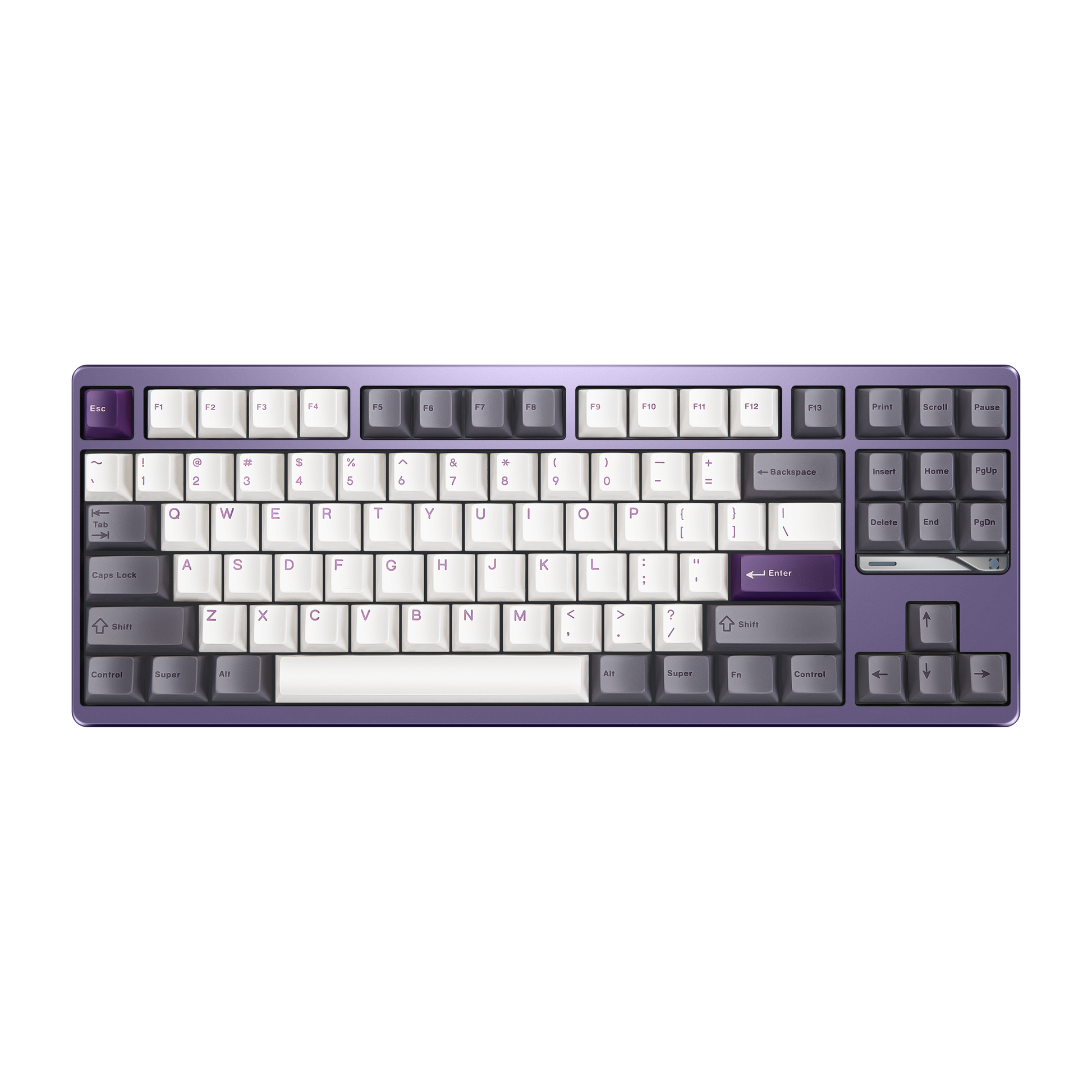

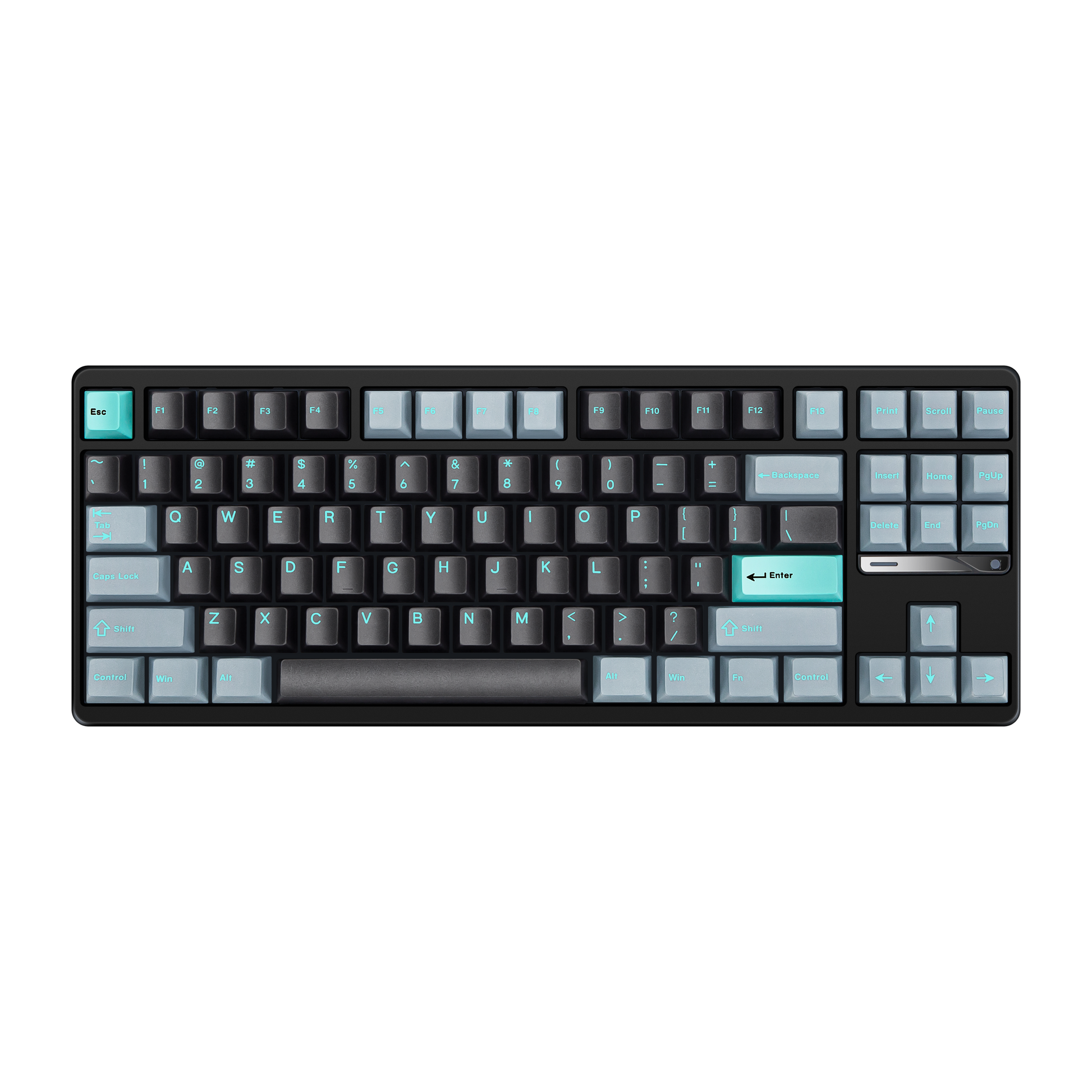

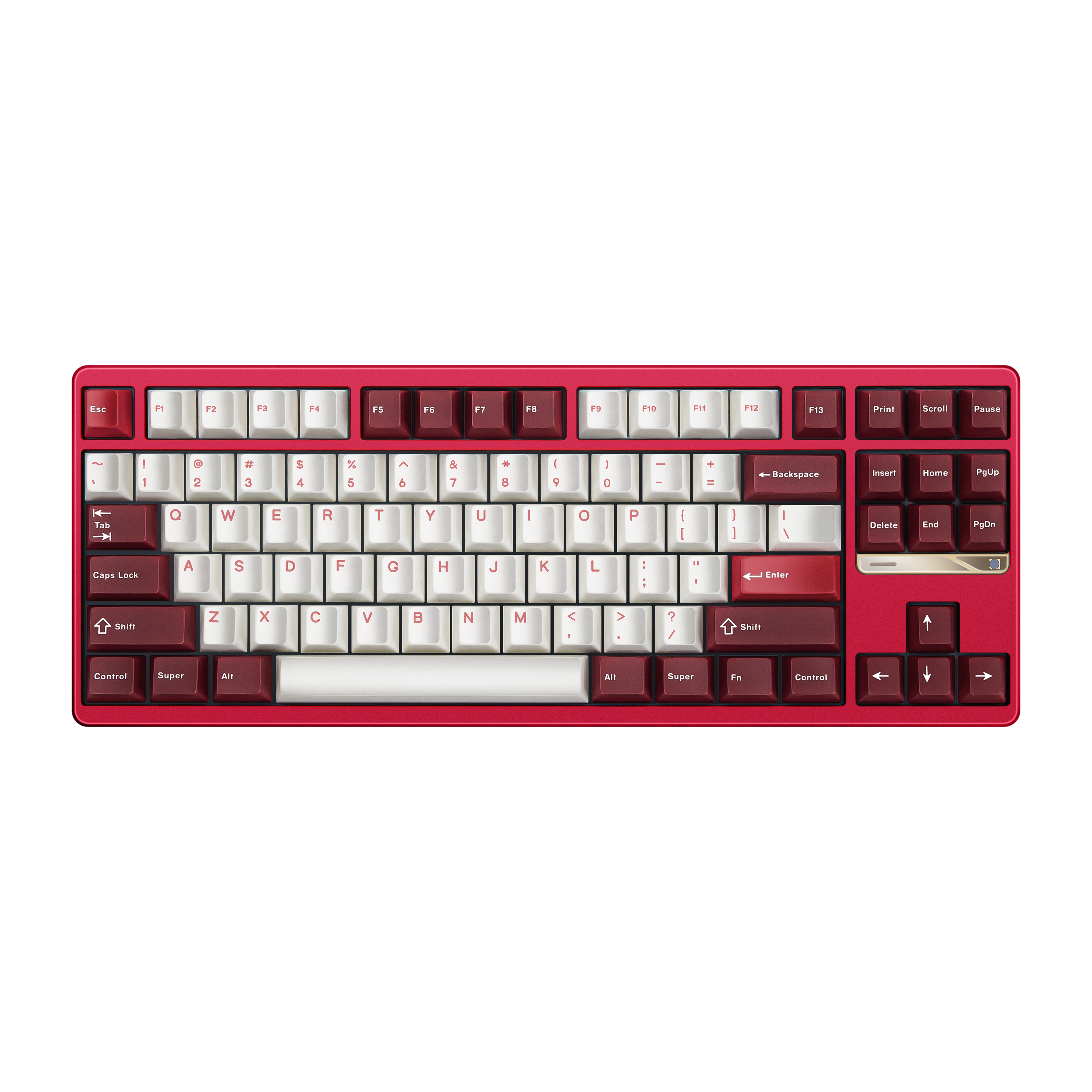

Colors
Choose your EVO80.
Each finish is paired with its own battery compartment color, giving every version a distinct identity while keeping the overall form minimal and refined.
Cream
Nimbus
Ink
Sandgold
Scarlet
Tyrian
Baby Pink
Butter YellowEvoworks EVO80
Designed to be used. Built to be noticed.
From its practical 80% layout to its butterfly leaf spring structure, refined case details, tuned acoustic options, and tri-mode PCB, EVO80 brings everyday usability and enthusiast-level design into one complete keyboard.
